Газовые горелки

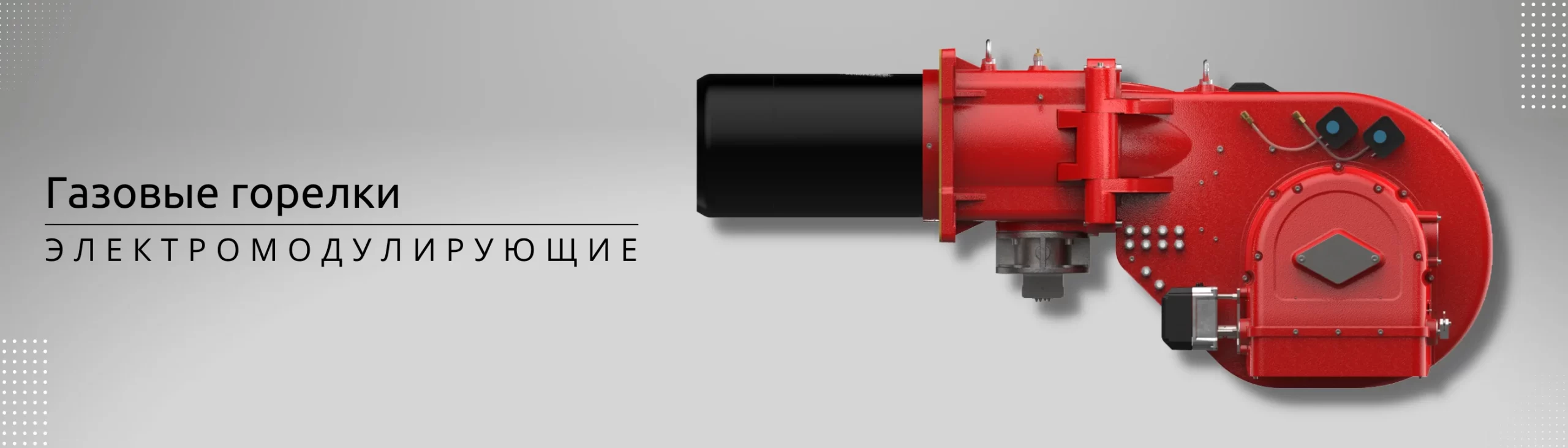

Газовые моноблочные горелки с электронной модуляцией (Серии RGB-M)

Газовые горелки RAADMAN с электронной модуляцией серии RGB-M c электронным управлением, охватывающие диапазон мощности от 160 до 17000 кВт, предназначены для широкого спектра бытового и промышленного применения. Все горелки оснащены электронной системой управления LAMTEC или SIEMENS с возможностью полного контроля соотношения воздух/газ во всем рабочем диапазоне горелки. Горелки были спроектированы и протестированы в соответствии со стандартом BS EN 676. Согласно проведенным экспериментам, значения уровня угарного газа (CO) даже при работе с низким избытком воздуха не превышают 30 мг/кВтч (в некоторых случаях также были зафиксированы значения близкие к нулю). Точная конструкция пламенной головы приводит к образованию оптимальной газовоздушной смеси, что гарантирует высокий уровень КПД во всех диапазонах. Усовершенствованная конструкция горелки, сопровождаемая высококачественными электронными устройствами, также приведет к дальнейшему повышению эффективности работы котла с целью снижения стоимости затраченного топлива и уровня выбросов.

Газовые горелки (серия RGB-M): рабочий диапазон мощности

Схема газовой рампы

GT1 (Входное давление <360 мбар, раздельные элементы)

GT2 (Входное давление <360 мбар, комплектация с мультиблоком)

GT3 (Входное давление <360 мбар, раздельные элементы, газ зажигания (с запалом))

GT4 (Входное давление<360 мбар, Мультиблочная газовая рампа, с запалом)

GT5 (Входное давление >360 мбар, раздельные элементы, (с  запалом))

GT6 (Входное давление >360 мбар, комплектация с мультиблоком, газ зажигания (с запалом))

1.Шаровой кран

2.Газовый фильтр

3.Кнопочный кран

4.Манометр

5.Регулятор (стабилизатор) (низкое давление)

6.Манометр

7.Реле минимального давления газа

8.Предохранительный газовый клапан

9. Главный клапан

10. Датчик-реле давления газа контроля герметичности

11. Реле максималього давления газа

12.Газовый дроссель

13.Мультиблок соленоидных клапанов

14. Отсечный клапан

15.Регулятор высокого давления

16.Пружинные предохранительные клапаны

17.Регулятор газа зажигания (пилота)

18.Клапан газа зажигания 1 (запал 1)

19.Клапан газа зажигания 2 (запал 2)

Размеры газовой рампы

Серии RGB-M
ГорелкаТип рампыРазмер газовой рампы∆P B. V∆P C.H* (мбар)
RGB-M-55GT-1Rp 1 ½27.2
GT-2Rp 1 ½
RGB-M-80GT-1Rp 1 ½210.3
GT-2Rp 1 ½
RGB-M-85/LNGT-1Rp 1 ½211.7
GT-2Rp 1 ½
RGB-M-110GT-1Rp 1 ½29
GT-2Rp 1 ½
RGB-M-130/LNGT-1Rp 1 ½222.5
GT-2Rp 1 ½
RGB-M-145GT-1Rp 228.6
GT-2Rp 2
RGB-M-175/LNGT-1Rp 2317
GT-2Rp 2
RGB-M-185GT-1Rp 2314.5
GT-2Rp 2
RGB-M-205GT-1Rp 2314.5
GT-2Rp 2
RGB-M-255/LNGT-1DN65324.9
GT-2Rp 2
RGB-M-305GT-1DN65420.6
GT-2Rp 2
RGB-M-385GT-1DN80431.7
GT-2DN65
RGB-M-405/LNGT-1DN80447
GT-2DN65
RGB-M-505/LNGT-1DN80456
GT-2DN65
RGB-M-605GT-1DN80462.8
GT-2DN65
RGB-M-705**GT-3DN100478
GT-4DN80
RGB-M-705***GT-3DN100485
GT-4DN80
RGB-M-805**GT-3DN100590
GT-4DN80
RGB-M-805***GT-3DN100595
GT-4DN80
RGB-M-950GT-3DN100585
GT-4DN80
GT-5DN80
RGB-M-1050GT-3DN1005110
GT-4DN100
GT-5DN100
RGB-M-1250GT-5DN100585
GT-6DN100
RGB-M-1350GT-4DN1006100
GT-5DN100
GT-6DN100
Серии RGB-M
ГорелкаТип рампыРазмер газовой рампы∆P B. V∆P C.H* (мбар)
RGB-M-1550GT-4DN1007110
GT-5DN100
GT-6DN100
RGB-M-1750GT-4DN1007125
GT-5DN100
GT-6DN100
RGB-M-2250GT-5DN12515165
GT-5DN125
GT-6DN100
RGB-M-2550GT-4DN12517160

Пламенная труба

Специальное примечание: Вышеуказанные размеры газовых рамп предлагаются на основе запросов клиентов и ограничений проектов при размещении заказа. Таким образом, мы просим читателей рассматривать данную информацию как предварительные и наиболее вероятные предложения.

Выбросы серий RGB-M
