Серия PE

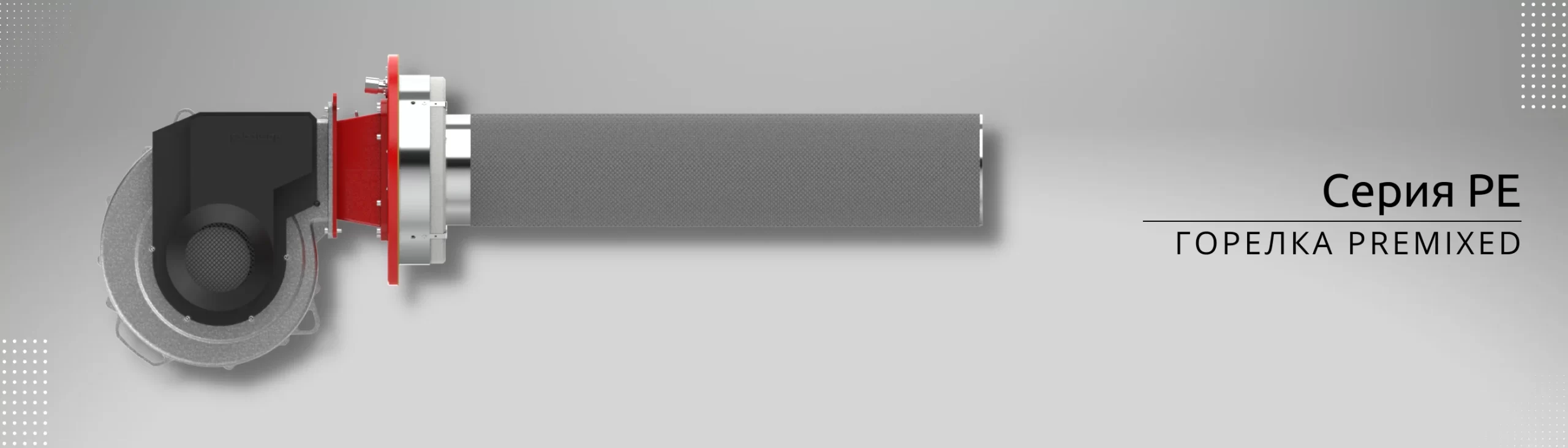

Горелки Premixed RAADMAN

Горелки pre-mixed RAADMAN орелки Raadman с предварительным смешиванием оснащены центробежным вентилятором и бесщеточным электродвигателем, которые гарантируют высокую производительность, низкий уровень шума и оптимальное изменение скорости. Изменение скорости двигателя регулирует подачу газа. Газовая рампа горелка Pre-mixed состоит из пневматического дозирующего многоблочного газового клапана, который регулирует подачу газа с помощью обратной связи по давлению вентилятора.

Благодаря стандартной смесительной трубке Вентури газ и воздух для горения полностью смешиваются перед крыльчаткой вентилятора. С помощью PWM -импульса и, как следствие, управления вращением нагнетателя смесь переносится в зону горения. Наконец, хорошая искра дает предварительно смешанное пламя с минимальными загрязнениями.

pe-series-burner
Управление электронной модуляцией

Управление электронной модуляцией

Полностью электронные модулируемые горелки разработаны для безопасной работы во всем диапазоне нагрузки от высокого до низкого. Наиболее распространенные значения модуляции в горелках серии PB — от 1:5 до 1:6.
Высокий коэффициент снижения используется для уменьшения цикличности работы горелки и котла и поддержания постоянной температуры или давления в котле. Это очень важно, если котел используется в промышленном процессе, требующем постоянной температуры или давления.
Горелки серии PB оснащены электронной микропроцессорной панелью управления, которая в горелках с Post-Mixed управляет воздушной заслонкой и серводвигателями топлива, а в горелках с предварительным смешением с помощью PWM-сигналов регулирует скорость вращения вентилятора. Использование электронной модуляции предот- вращает гистерезис благодаря точному управлению независимыми сервомоторами и программ- ному обеспечению, связанному по can – шине.
В горелках RAADMAN серии PB применяются контроллеры от проверенных временем производителей Siemens LMV26/37 и LME71 . Эти системы управления горелкой сочетают в себе преимущества электронного регулятора соотношения топливо/воздух и электронного блока управления горелкой.

Мощностной ряд pre-mixed

Мощностной ряд pre-mixed

Габаритные размеры горелок Premixed

Модель L1 L2 L3 L4 D1 D2 D3 D4 D5 Количество отверстий
RPB-M-15/PE 745 442 204 238 98 285 265 228 6.6 8
RPB-M-20/PE 838 515 272 238 98 285 265 228 6.6 8
RPB-M-50/PE 915 483 300 158 200 460 435 364 11 8
RPB-M-80/PE 1192 613 450 158 245 510 480 415 11 8
RPB-M-125/PE 1419 838 674 158 245 510 480 415 11 8
RPB-M-150/PE 1668 1006 843 158 245 510 480 415 11 8
RPB-M-175/PE 1806 1149 983 158 245 510 480 415 11 8
RPB-M-200/PE 1948 1289 1123 158 245 510 480 415 11 8
RPB-M-250/PE 2053 1361 1145 210 300 580 550 475 11 8
RPB-M-300/PE 2280 1590 1374 210 300 580 550 475 11 8
RPB-M-400/PE 2752 2042 1745 286 350 655 620 574 13.5 8
