PE Series

PE Series (premixed burner)

Articles

Nox Reduction Methods

During the last century, Nitrogen oxide emissions, called NOx, have constantly been increasing. Due to the destructive effects of nitrogen oxides on the health of

Industrial Furnace Burners

The «furnace industry» and products determine the type of flame contact. In many heat treatment processes, where the combustion gases must not come into contact

PE Series

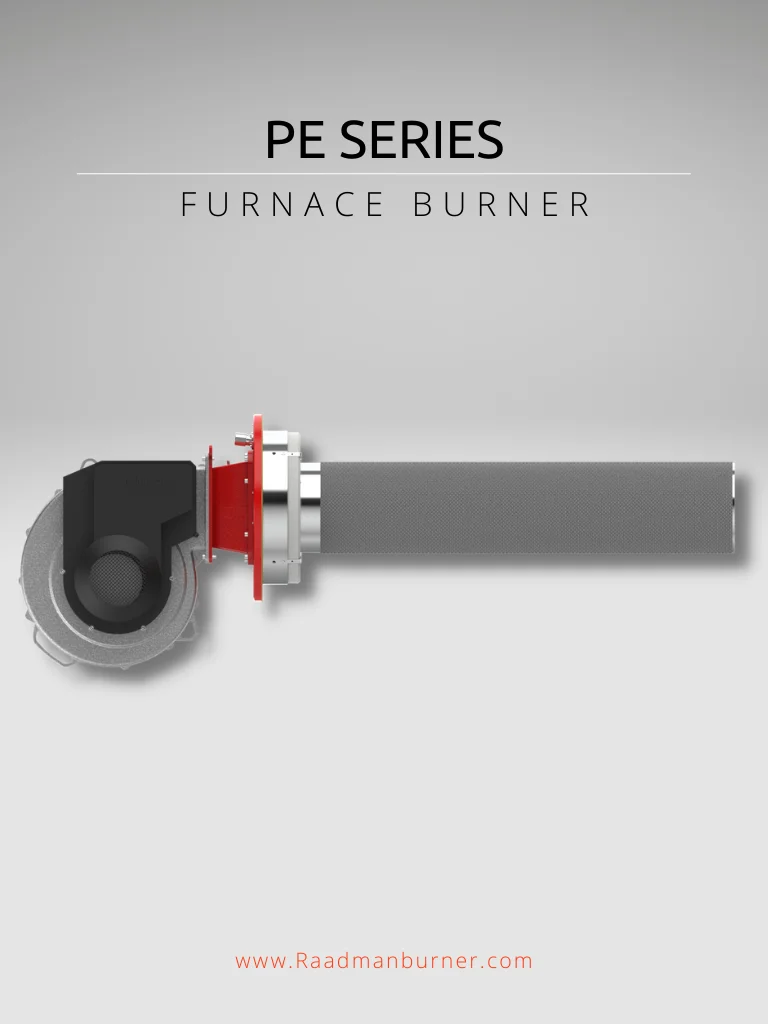

Raadman Pre-mixed Burners

Raadman pre-mixed burners equipped with a centrifugal fan and a brushless electromotor that guarantee high performance, low sound emission and optimized speed variation. The motor speed variation controls the regulation of gas delivery. Pre-mixed burner gas train consist of a pneumatic proportioning multiblock gas valve that regulates gas input by fan pressure feedback.

Thanks to standard mixing venturis, Gas and combustion air are completely mixed before the fan wheel. Using the PWM pulse and, as a consequence, controlling the rotation of blower, the mixture is transferred to combustion area. Finally, A well spark, results a pre-mixed flame with minimum pollutions.

pe-series-burner
electrical modular operation premixed burner

Electrical Modular Operation

Full electronic modulating burners are designed to safely operate throughout its firing range from high fire to low fire. The most common turndown ratings in PB-Series burner are 1:5 up to 1:6. High turndown is used to reduce the burner cycling and maintain a consistent temperature or pressure in the boiler. This is crucial if the boiler is used in an industrial process that requires a consistent temperature or pressure. PB-Series burners are equipped with an electronic microprocessor management panel, which in post-mixed burners controls the air damper and fuel servomotors and in pre-mixed burners, using PWM signals, controls fan rotational speed. Using electronic modulation, hysteresis is prevented by the precise control of the separated in independent servomotors and the software linked by can – bus. The Siemens LMV26/37 and Siemens LME71, as the most popular brands used in Raadman Post-Mixed and Premix burners respectively. This burner Control System combines the benefits of an electronic fuel/air ratio controller with an electronic burner control unit.

Firing Rate of Pre-Mixed Burner

Firing Rate of Pre-Mixed Burner

Pre-mixed burner general dimension

Model L1 L2 L3 L4 D1 D2 D3 D4 D5 Number Of Holes
RPB-M-15/PE 745 442 204 238 98 285 265 228 6.6 8
RPB-M-20/PE 838 515 272 238 98 285 265 228 6.6 8
RPB-M-50/PE 915 483 300 158 200 460 435 364 11 8
RPB-M-80/PE 1192 613 450 158 245 510 480 415 11 8
RPB-M-125/PE 1419 838 674 158 245 510 480 415 11 8
RPB-M-150/PE 1668 1006 843 158 245 510 480 415 11 8
RPB-M-175/PE 1806 1149 983 158 245 510 480 415 11 8
RPB-M-200/PE 1948 1289 1123 158 245 510 480 415 11 8
RPB-M-250/PE 2053 1361 1145 210 300 580 550 475 11 8
RPB-M-300/PE 2280 1590 1374 210 300 580 550 475 11 8
RPB-M-400/PE 2752 2042 1745 286 350 655 620 574 13.5 8
