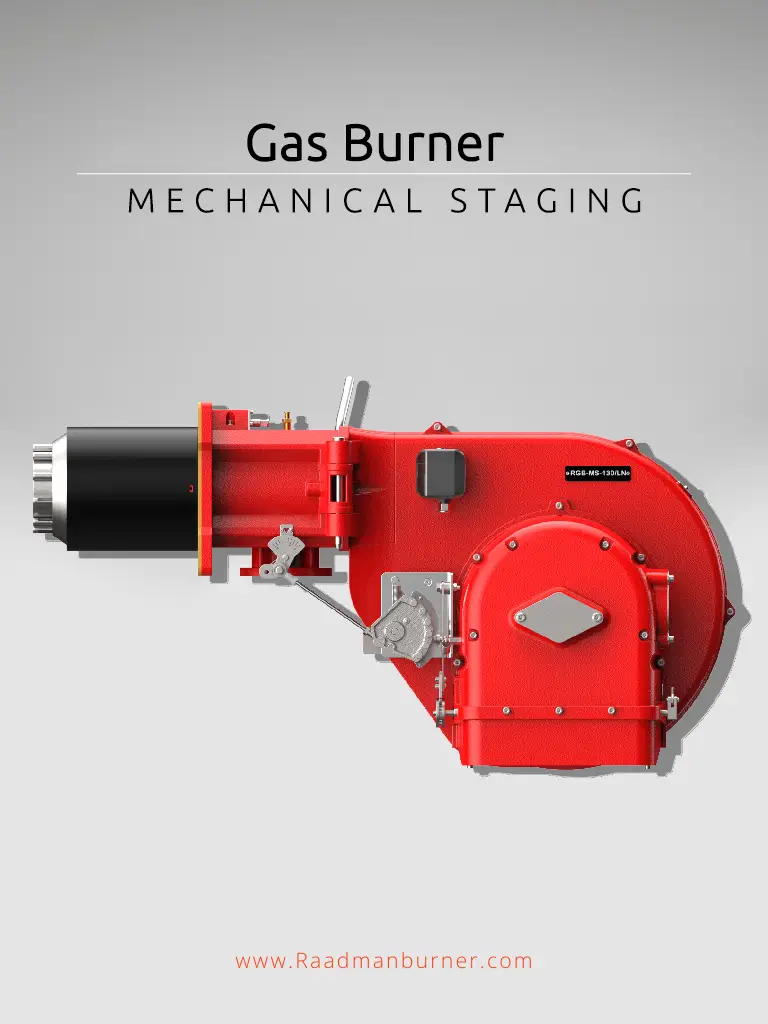

RGB-MS Series Raadman Burner

Raadman mechanical staging gas burners have a firing range of 1000 to 6200 kW and are made with superior electro-mechanical components for easy installation and starting.

Using the cam mechanism and butterfly valve, there will be a “Staging” operation in gas state. To reach the desired stages, one actuator opens the damper and butterfly valve in this burner type.

This category of burners includes all mechanical components, burner head, cam mechanism, ignition devices, burner controllers such as Shokouh /Honeywell TMG or Siemens LFL, burner actuator, accessories of power system, ventilation motor, fan wheel, safety devices, and air pressure switches.

Gas train includes filter, regulator, main and safety valves, pressure gauges, minimum pressure switch, leak test pressure switch, and valve proving system for burners with a capacity of over 1.2 MW (All according to BS-EN 676).

Technical & Functional Features

• Lightweight and optimized geometry.
• High-quality heat-resistant steel material for all parts of burner head as well as flame covering accessories.
• air damper for air flow setting and butterfly valve for regulating gas output controlled by a servomotor with variable cam
• Mono-block design and fully enclosed aluminum air housing.
• Simple to install, adjust, and maintain.
• Easy access to internal components.
• Engineered to maximize efficiency and fuel cost savings.
• Suitable for firetube, firebox, and water tube boilers
• Equipped with high-quality and reliable electronic devices.
• Up to 10-20 % flame shape control
• High-quality staging controllers from reputable manufacturers
