Power: 2250 (kW) |

SKU: RGBMS205 |

5/5

Technical Data

Technical Data
Value
Unit

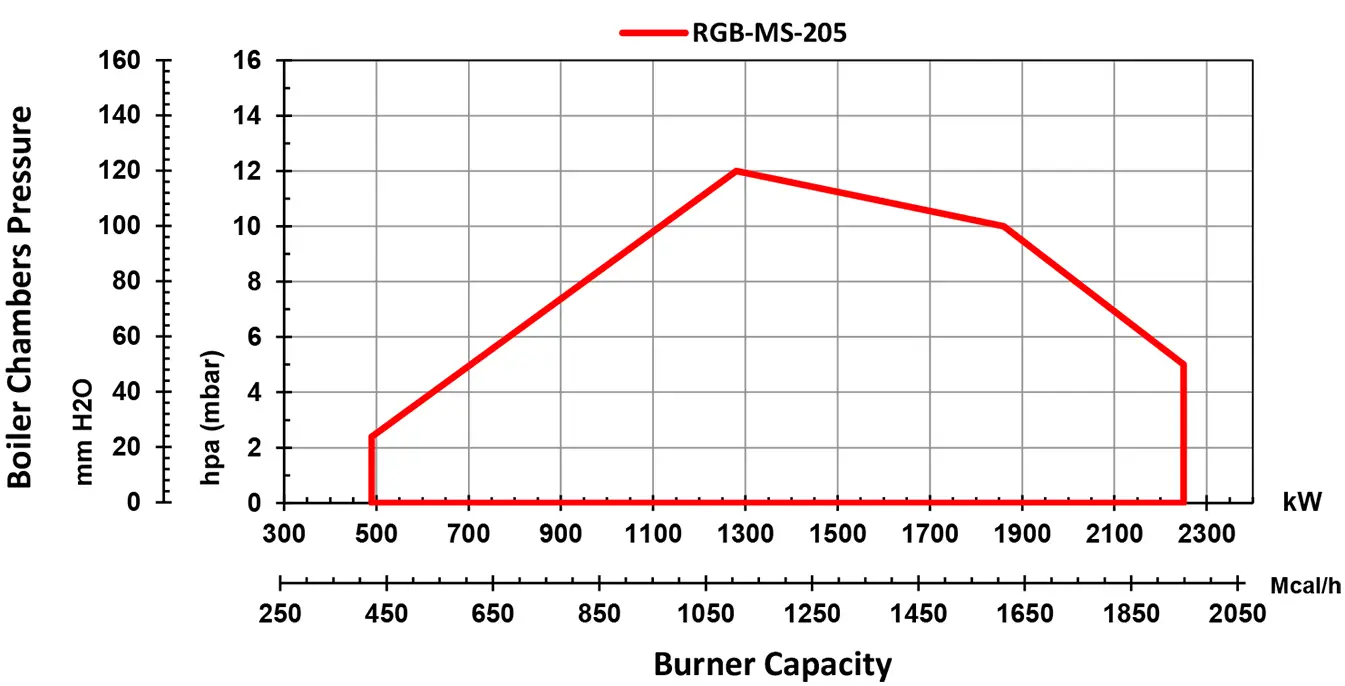

Heat Rated Output
490-2250 / 422-1936
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:4
G20 Gas Rated Output
490-2250
kW
G20 Gas Flow Rate
49-225
m3/h
G25 Gas Rated Output
490-2250
kW
G25 Gas Flow Rate
57-262
m3/h
LPG Rated Output
520-2250
kW
LPG Gas Flow Rate
20-87
m3/h
Light Oil Rated Output
kW
Light Oil Flow Rate
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
108-360
mbar
Gas Line Pressure (High Pressure type)
bar
Input Gas Pipe Size (Low Pressure)
Rp 2
Input Gas Pipe Size (High Pressure)
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
5.5
kW
Fan Motor Speed
2840
rpm
Pump Model
Pump Motor Power
kW
Pump Motor Speed
rpm
Gas Operation Mode
Mechniacal Staging
Oil Operation Mode
Centrifugal Fan
360x66x28
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
1230x670x600
mm
Weight
100
Kg

RGB-MS-205

Power: 2250 (kW)

SKU: RGBMS205

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
490-2250 / 422-1936
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:4
G20 Gas Rated Output
490-2250
kW
G20 Gas Flow Rate
49-225
m3/h
G25 Gas Rated Output
490-2250
kW
G25 Gas Flow Rate
57-262
m3/h
LPG Rated Output
520-2250
kW
LPG Gas Flow Rate
20-87
m3/h
Light Oil Rated Output
kW
Light Oil Flow Rate
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
108-360
mbar
Gas Line Pressure (High Pressure type)
bar
Input Gas Pipe Size (Low Pressure)
Rp 2
Input Gas Pipe Size (High Pressure)
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
5.5
kW
Fan Motor Speed
2840
rpm
Pump Model
Pump Motor Power
kW
Pump Motor Speed
rpm
Gas Operation Mode
Mechniacal Staging
Oil Operation Mode
Centrifugal Fan
360x66x28
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
1230x670x600
mm
Weight
100
Kg
Burner Type L1 L2 L3 H1 H2 D1 D2 D3 D4 N N1 N2 B.C.D B.C.D1 B.C.D2
RGB-MS-205
1229
388
666
600
302
223
18
4
323
367
Gas Operation
Nox (mg/kW.h)
CO (ppm)
120
30
Light Oil Operation
Nox (mg/kW.h)
CO (ppm)
Heavy Oil Operation
Nox (mg/kW.h)
CO (ppm)

Gas Operation

Nox (mg/kW.h) CO (ppm)
120
30

Light Oil Operation

Nox (mg/kW.h) CO (ppm)

Heavy Oil Operation

Nox (mg/kW.h) CO (ppm)
