RGB-MC Series Raadman Burner

Technical & Functional Features

  • Lightweight and optimized geometry.
  • High-quality heat-resistant steel material for all parts of burner head as well as flame covering accessories.
  • air damper for air flow setting and butterfly valve for regulating gas output controlled by a servomotor with variable cam
  • Mono-bloc design and fully enclosed aluminum air housing.
  • Simple Installation, adjustment, and maintenance.
  • Easy access to internal components.
  • Engineered to maximize efficiency and fuel cost savings.
  • Suitable for firetube, firebox, and water tube boilers
  • Equipped with high-quality and reliable electronic devices.
  • Up to 10-20 % flame shape control
  • High-quality staging controllers from well-known producers.

Standard compliance

Designed in accordance with ISIRI-7595 and ISIRI-7594 Iran national standards (equal to the BS-EN676, BS-EN267 European standards)

mono block mechanical modular gas burner

Burner Selection

Burner Capacity (KW) Turn Down Burner Capacity (KW) Turn Down
RGB-MC-85/LN NG:250-900 1:3 RGB-MC-110 NG:350-1150 1:3
RGB-MC-130/LN NG:350-1280 1:3 RGB-MC-145 NG:400-1480 1:4
rgb-mc-85-ln monoblock mechanical modular gas burner
rgb-mc-110 mechanical modular mono block gas burner
Burner Capacity (KW) Turn Down Burner Capacity (KW) Turn Down
RGB-MC-205 NG: 490-2250 1:4 RGB-MC-255/LN NG:580-2400 1:4
rgb-mc-205 mechanical modular monoblock gas burner
rgb-mc-255-ln mechanical modular monoblock gas burner
Burner Capacity (KW) Turn Down Burner Capacity (KW) Turn Down
RGB-MC-305 NG: 600-3000 1:5 RGB-MC-405/LN NG: 680-4100 1:6
RGB-MC-385 NG: 650-3800 1:5 RGB-MC-505/LN NG: 700-5100 1:7
rgb-mc-305-385 monoblock mechanical modular gas burner
rgb-mc-405-505-ln monoblock mechanical modular gas burner

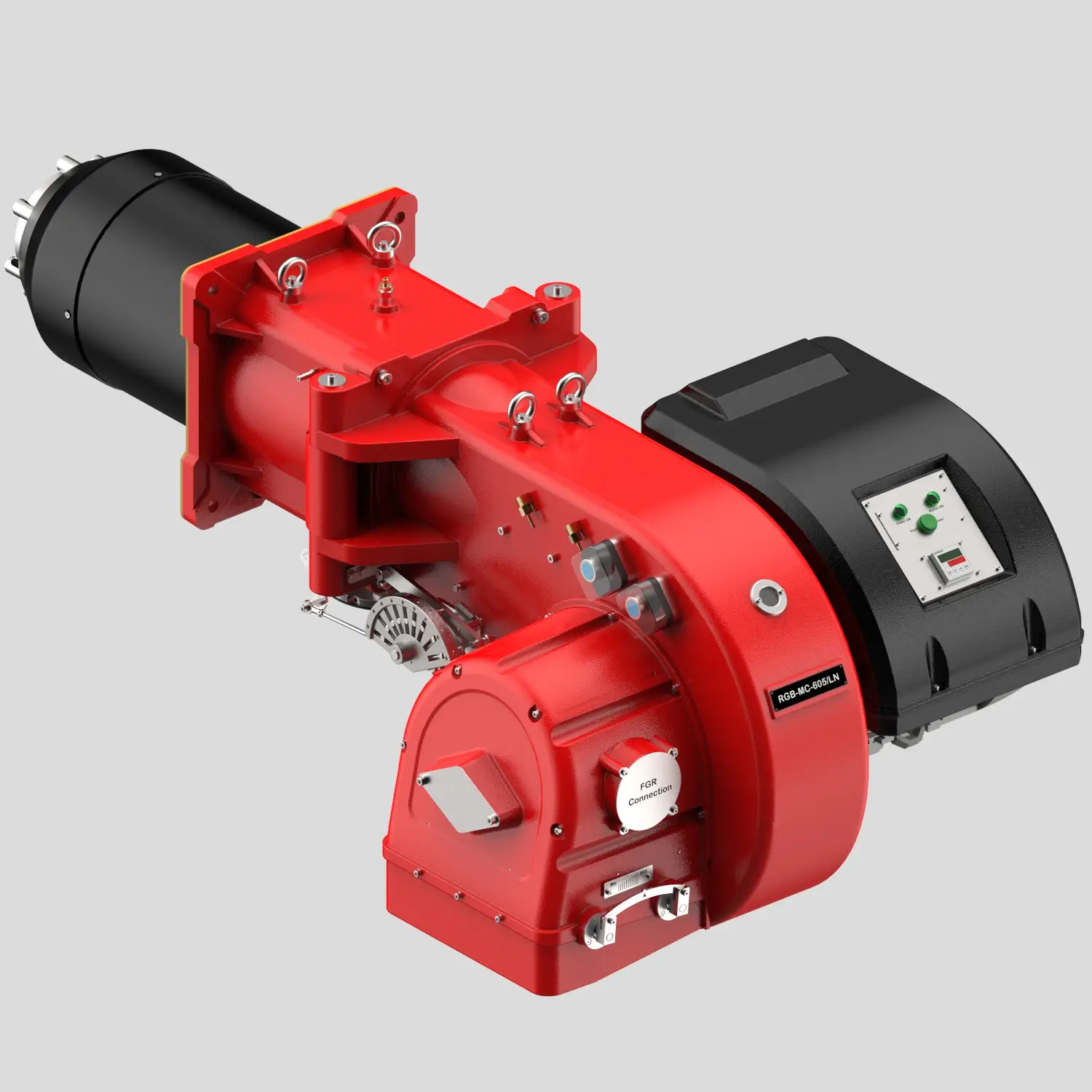

rgb-mc-605 monoblock mechanical modular gas burner
Burner Capacity (KW) Turn Down
RGB-MC-605 NG: 850-6200 1:7

About Working Diagram

Working diagram for gas burner certified in accordance with EN 676.

The firing rate diagram has been obtained considering ambient temperature of 20°C and atmospheric pressure of 1013 mbar (Sea level condition). For installation at higher altitudes, a reduction in capacity of 1% per 100 m above sea level should be taken into account.

Emssion

monoblock mechanical modular gas burner emission
