Gas Burners

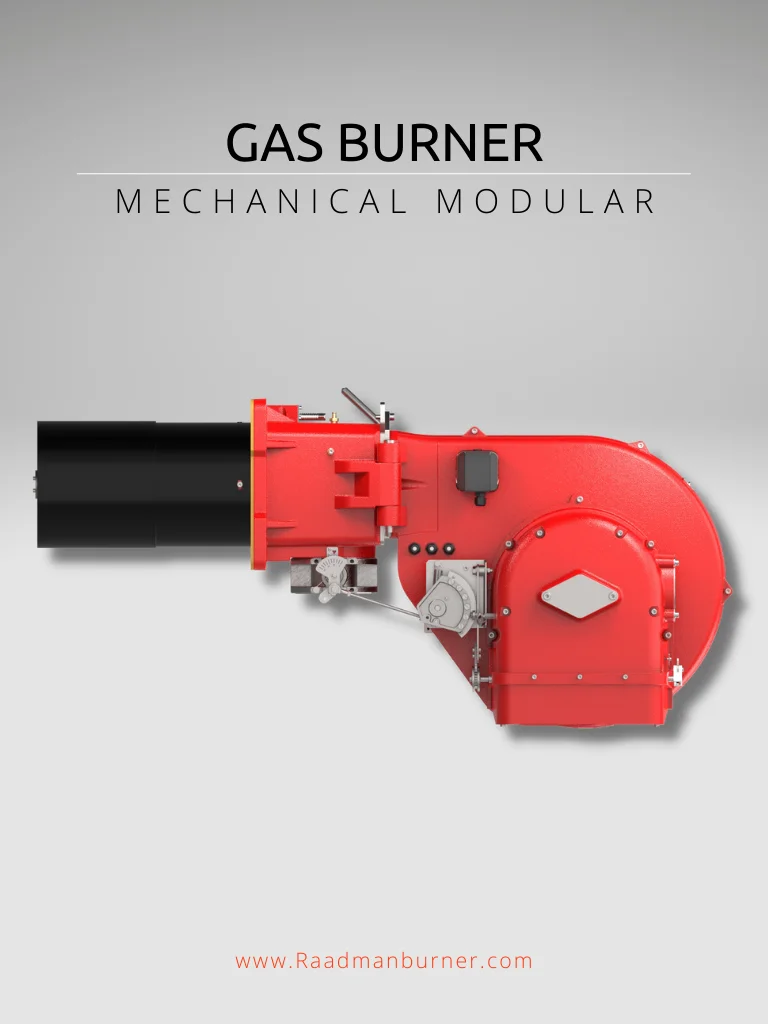

gas burner mechanical modular monoblock burner

Articles

Nox Reduction Methods

During the last century, Nitrogen oxide emissions, called NOx, have constantly been increasing. Due to the destructive effects of nitrogen oxides on the health of

Industrial Furnace Burners

The «furnace industry» and products determine the type of flame contact. In many heat treatment processes, where the combustion gases must not come into contact

Gas Burners

RGB-MC Series Raadman Burner

Technical & Functional Features

  • Lightweight and optimized geometry.
  • High-quality heat-resistant steel material for all parts of burner head as well as flame covering accessories.
  • air damper for air flow setting and butterfly valve for regulating gas output controlled by a servomotor with variable cam
  • Mono-bloc design and fully enclosed aluminum air housing.
  • Simple Installation, adjustment, and maintenance.
  • Easy access to internal components.
  • Engineered to maximize efficiency and fuel cost savings.
  • Suitable for firetube, firebox, and water tube boilers
  • Equipped with high-quality and reliable electronic devices.
  • Up to 10-20 % flame shape control
  • High-quality staging controllers from well-known producers.

Standard compliance

Designed in accordance with ISIRI-7595 and ISIRI-7594 Iran national standards (equal to the BS-EN676, BS-EN267 European standards)

Emssion
