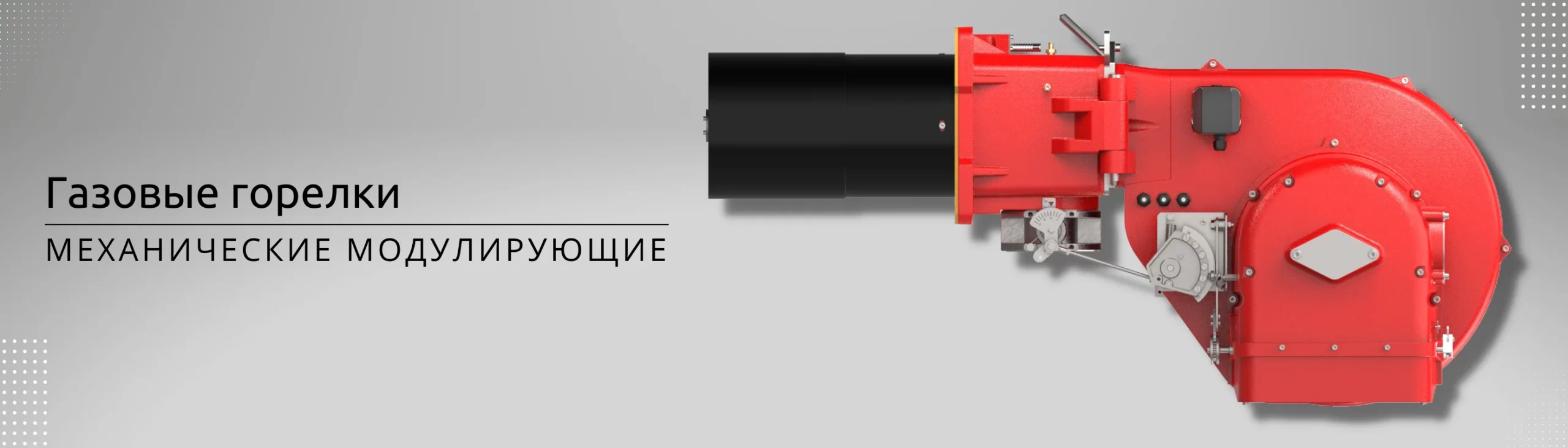

Газовые горелки

Механические-модулирующие Газовые горелки
- slider
0 — 100
Категории
Посмотрите каталог

Статьи по теме

Исследование по шумоглушителям в промышленных горелках и способы снижения шума вентилятора

Шумоглушитель, который использовался для снижения звука промышленных горелок в паровых и водогрейных котельных и т. д., имеет важное значение и осуществляться двумя способами: впрыскиванием полиуретановых

Горелки для промышленных печей

Промышленные печи и продукции определяют тип контакта пламени. Во многих процессах термической обработки, где продукты сгорания не должны контактировать с продуктами, используются горелки с косвенным горением.

Газовые горелки

Горелка серии RGB-MC Raadman

Технические и функциональные данные

  • Легкая и оптимизированная геометрия.
  • Высококачественный жаропрочный материал для всех частей. головки горелки, а также оборудований для покрытия пламени.
  • Воздушная заслонка для регулировки расхода воздуха и дроссельный клапан для регулирования подачи газа, управляемая серводвигателем с регулируемым кулачком.
  • Моноблочная конструкция и алюминиевая воздушная камера .
  • Установка, наладка и обслуживания удобно.
  • Легкий доступ к внутренним оборудованиям.
  • Разработан для обеспечения максимальной эффективности и экономии топлива.
  • Подходит для жаротрубных, водогрейных и водотрубных котлов.
  • Оснащен качественной и надежной электроникой.
  • Контроль формы факела до 10-20 %
  • Качественные ступенчатые контроллеры от известных производителей.

Стандартизация и соблюдения правил

Разработан в соответствии с национальными стандартами Ирана ISIRI-7595 и ISIRI-7594

Выбросы
