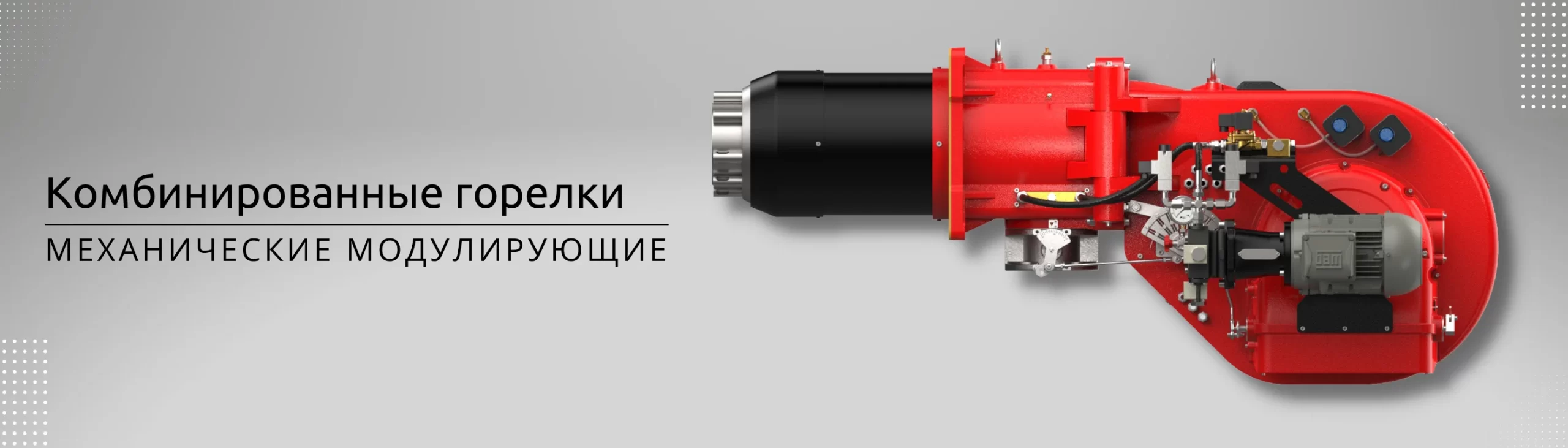

Комбинированные горелки

Механические модулирующиеКомбинированные горелки

Комбинированные горелки

Механические модулирующие Комбинированные горелки

Статьи по теме

Конденсационный котел: полный обзор от преимуществ до областей применения

С увеличением потребности в экономии энергии и снижении негативного воздействия на окружающую среду использование современных технологий в системах отопления приобретает все большее значение. Одной из

Паровой котел: его компоненты, значение и применение в современной промышленности

Паровой котел сегодня играет ключевую роль в производстве пара для тепловых электростанций, нефтеперерабатывающих заводов, пищевой промышленности и систем отопления. Паровой котел преобразует тепловую энергию в

Комбинированные горелки

Горелки серии RLGB-MC Raadman

Горелки с механической модуляцией мощностью 1000 до 6.200 кВт и изготавливаются с использованием высококачественных электромеханических аксессуаров, которые легко устанавливаются и настраиваются. Они устойчивы к механическим воздействиям и экономично разработаны для городского или промышленного применения, такого как трехходовые водогрейные котлы, паровые котлы, генераторы горячего воздуха и т. д.

Система топлива

Комбинированная горелка (Дизельное топливо)

Тип OL-III:(Двухступенчатая Комбинированная Горелка)

Tип OL-III:(Трехступенчатая Комбинированная Горелка)

MV: Двигатель вентиятораVD1: Kлапан подачи дизельного топлива 1-й ступениC: Муфта
MP: Двигатель насосаVD2: Kлапан подачи дизельного топлива 2-й ступениG: Манометр
FS: ФакелVD2: Ступенчатый клапан подачи дизельного топливаF: Газовый или жидкий факел
VD: Предохранительный клапан дизельного топливаTA: Трансформатор зажиганияASV: Серводвигатель воздушной заслонки
PA: Реле давления воздуха

Emissions
