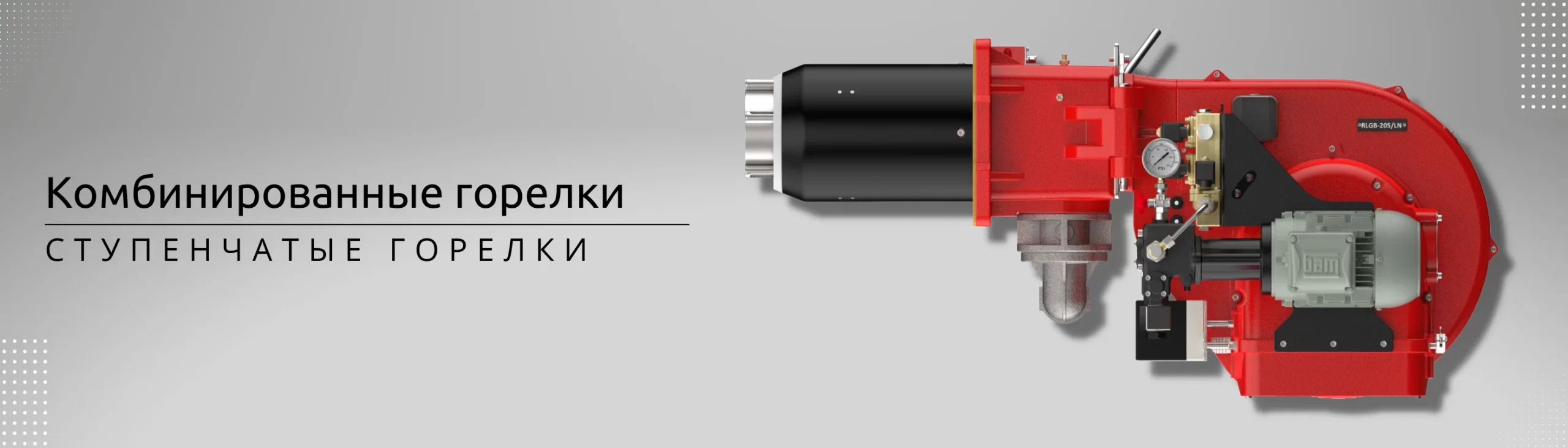

Комбинированные горелки

Горелки Raadman серии-RLGB

Спецификация

Газовые и двухтопливные горелки RAADMAN подходят для следующего использования.

  • Легкая и оптимизированная геометрия.
  • Установка на теплообменнике.
  • Водогоряйный котел.
  • Паровой котел и водогрейный котел высокого давления.
  • Генератор горячего воздуха Совместим со всеми типами камер. сгорания согласно стандарту EN303.

Выбросы

Выбросы измерялись в различных моделях при максимальной мощности в соответствии со стандартами DIN-EN 676 и DIN-EN 297.

Во время работы горелки, для обычной версии – ниже 30 и 120 мг/кВтч при 20 % значения CO и NOx, избытке воздуха для версии Low NOx (серия LN) ниже 20 и 80 мг/кВтч). следовательно, класс NOx горелки II и III утверждается для обычной версии и LN соответственно.

Система топлива

Кобинированная Горелка (Дизельное топливо)

Двухступенчатая комбинированная горелка

MV: Двигатель вентилятораVD1: Клапан подачи ж.топлива 1 ступеньC: Муфта
MP: Двигатель насосаVD2: Клапан подачи ж.топлива 2 ступеньG: Манометр
FS: Датчик пламениVD2: Ступенчатый клапан подачи ж.топливаF: Факел
VD: Предохранительный клапан ж.топливаTA: Трансформатор зажиганияASV: Сервопривод воздушной заслонки
PA: Реле давления воздуха

Выбросы
