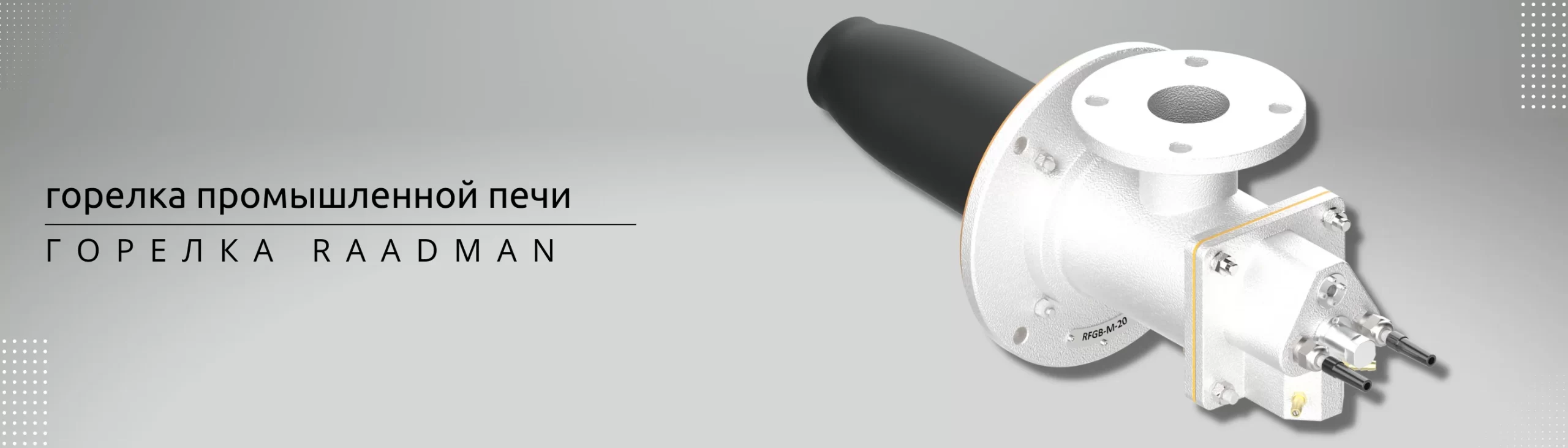

горелка промышленной печи

горелки для промышленной топки

Горелка увольнянного нагревателя

Горелки для котла косвенного нагрева

горелка промышленной печи

В современном мире, в котором мы живем, процесс горения и промышленные печи (топки), и горелки для промышленной топки играют значительную роль.

Топки применяются в таких отраслях промышленности, как:

  1. Плавка металла
  2. Блоки предварительного нагрева, например, отжиг
  3. Производство полезных ископаемых, таких как стекло, цемент, кирпичи, огнеупорные материалы и керамика.
  4. Нефтехимическая и нефтеперерабатывающая промышленность
  5. Мусоросжигательные предприятия
  6. Процессы сушки, такие как производство бумаги, печать и издательское дело.
  7. Пищевая промышленность, например, производство напитков

Бар топки и рабочая температура определяют тип и количество горелок, которые должны быть установлены  на промышленных печах.

В зависимости от работы топки, промышленные горелки могут устанавливаться на топке вертикально или горизонтально.

Промышленные топки (печи) подразделяются на две группы:  горелки с непрямым или косвенными, высокоскоростные, беспламенные, обогащенные кислородом, регенеративные и рекуперативные.
