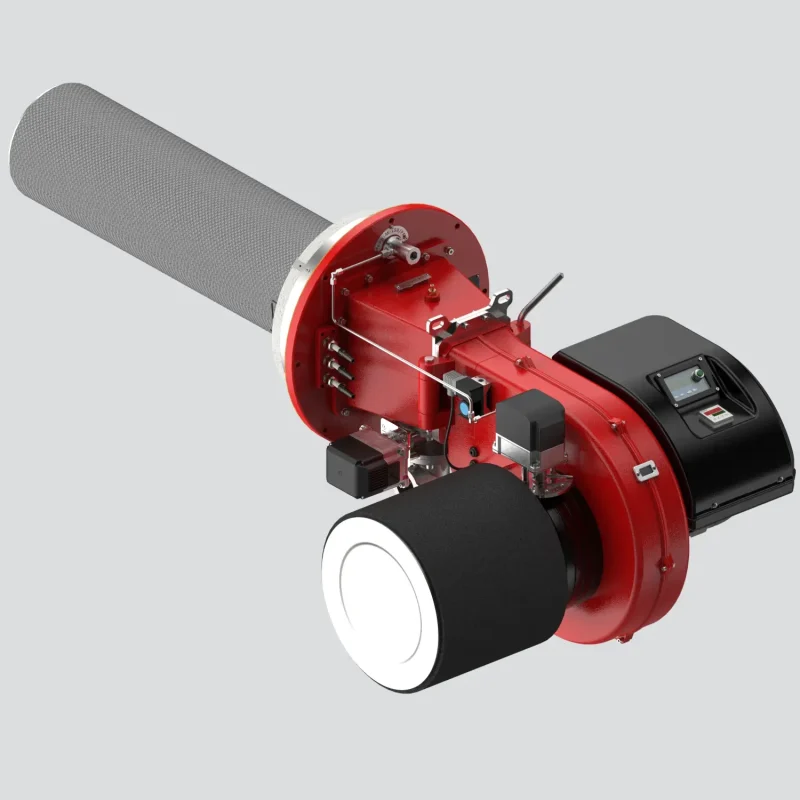

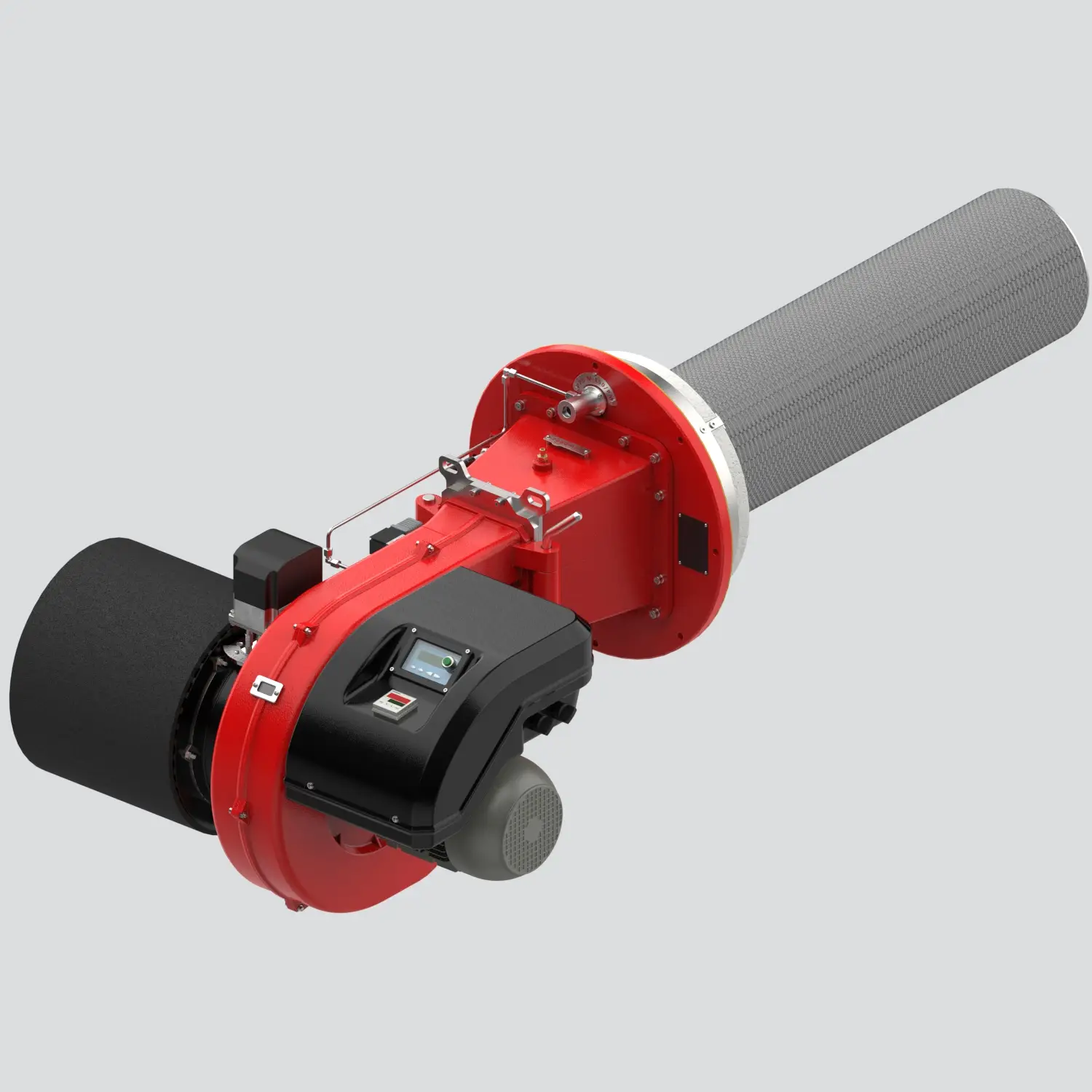

SKU: RPBM150PM-TR
| Technical Data | Value | Unit |
|---|---|---|
| Heat Rated Output | 375-1500 / 323-1291 | (kW) / (Mcal/h) |
| NOx Class | Ultra Low Nox | — |
| Turn Down Ratio | 1:4 | — |
| G20 Gas Rated Output | 375-1500 | kW |
| G20 Gas Flow Rate | 37-150 | m3/h |
| G25 Gas Rated Output | 375-1500 | kW |
| G25 Gas Flow Rate | 44-174 | m3/h |
| LPG Rated Output | -- | kW |
| LPG Gas Flow Rate | -- | m3/h |
| Light Oil Rated Output | -- | kW |
| Light Oil Flow Rate | -- | kg/h |
| Heavy Oil Rated Output | -- | kW |
| Heavy Oil Flow Rate | -- | kg/h |
| Gas Line Pressure (Low Pressure) | 53-138 | mbar |
| Gas Line Pressure (High Pressure Type) | -- | bar |
| Input Gas Pipe Size (Low Pressure) | Rp 2 | — |
| Input Gas Pipe Size (High Pressure) | -- | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 2.2 | kW |
| Fan Motor Speed | 2850 | rpm |
| Pump Model | -- | — |
| Pump Motor Power | -- | kW |
| Pump Motor Speed | -- | rpm |
| Gas Operation Mode | -- | — |
| Oil Operation Mode | -- | — |
| Centrifugal Fan | 360x66x28 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |
| Total Dimension | 1885x685x860 | mm |
| Weight | 78 | Kg |
| Burner Type | L1 | L2 | L3 | L4 | L5 | D1 | D2 | D3 | D4 | N | B.C.D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPB-M-150/PM | 1885 | 1021 | 843 | 178 | 858 | 245 | 11 | 510 | 415 | 8 | 480 |
| Gas Operation | |
|---|---|
| Nox (mg/kW.h) | CO (ppm) |
| 40 | 2 |
| Burner Card | |
|---|---|
| No file available | |
| Proposal | STP |
|---|---|
