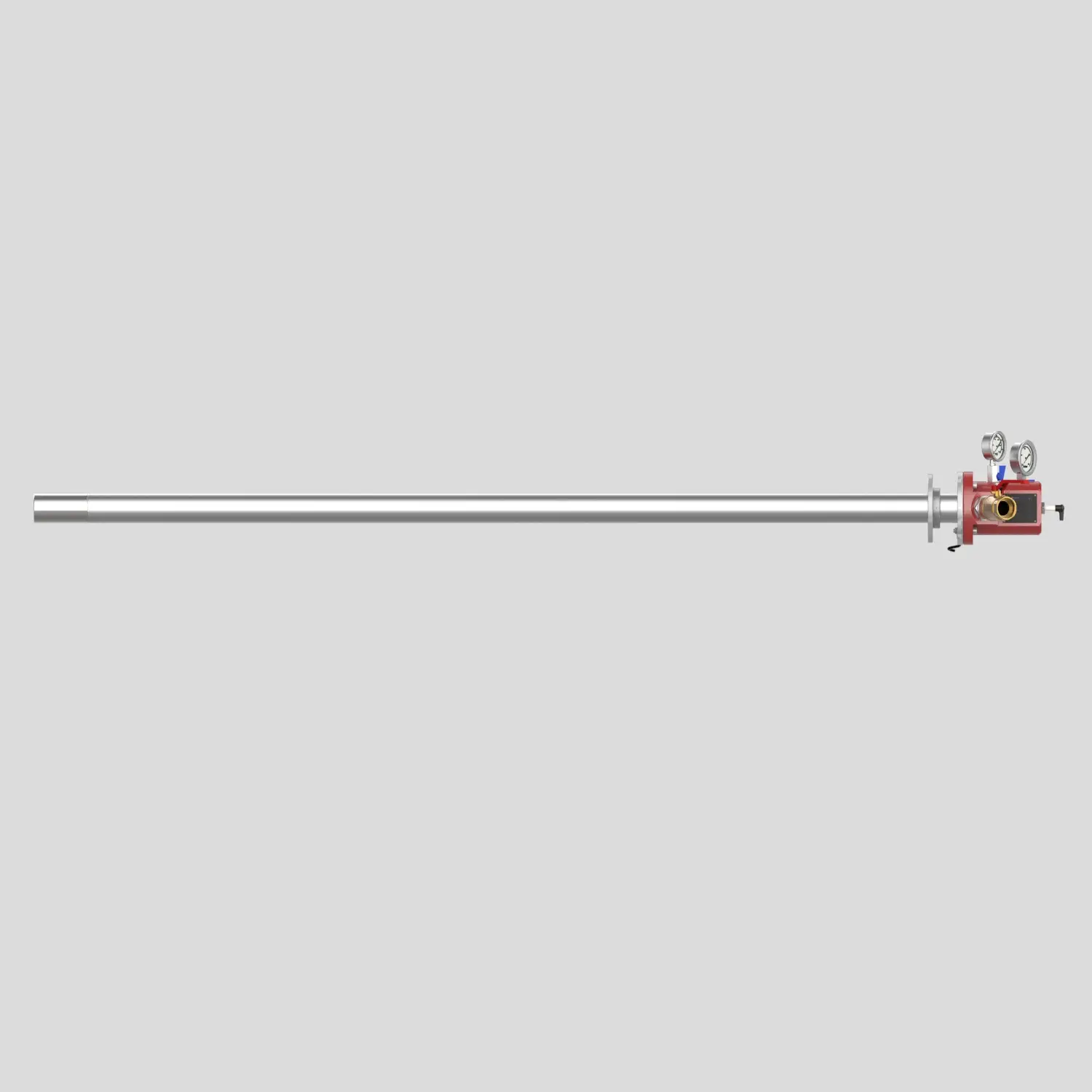

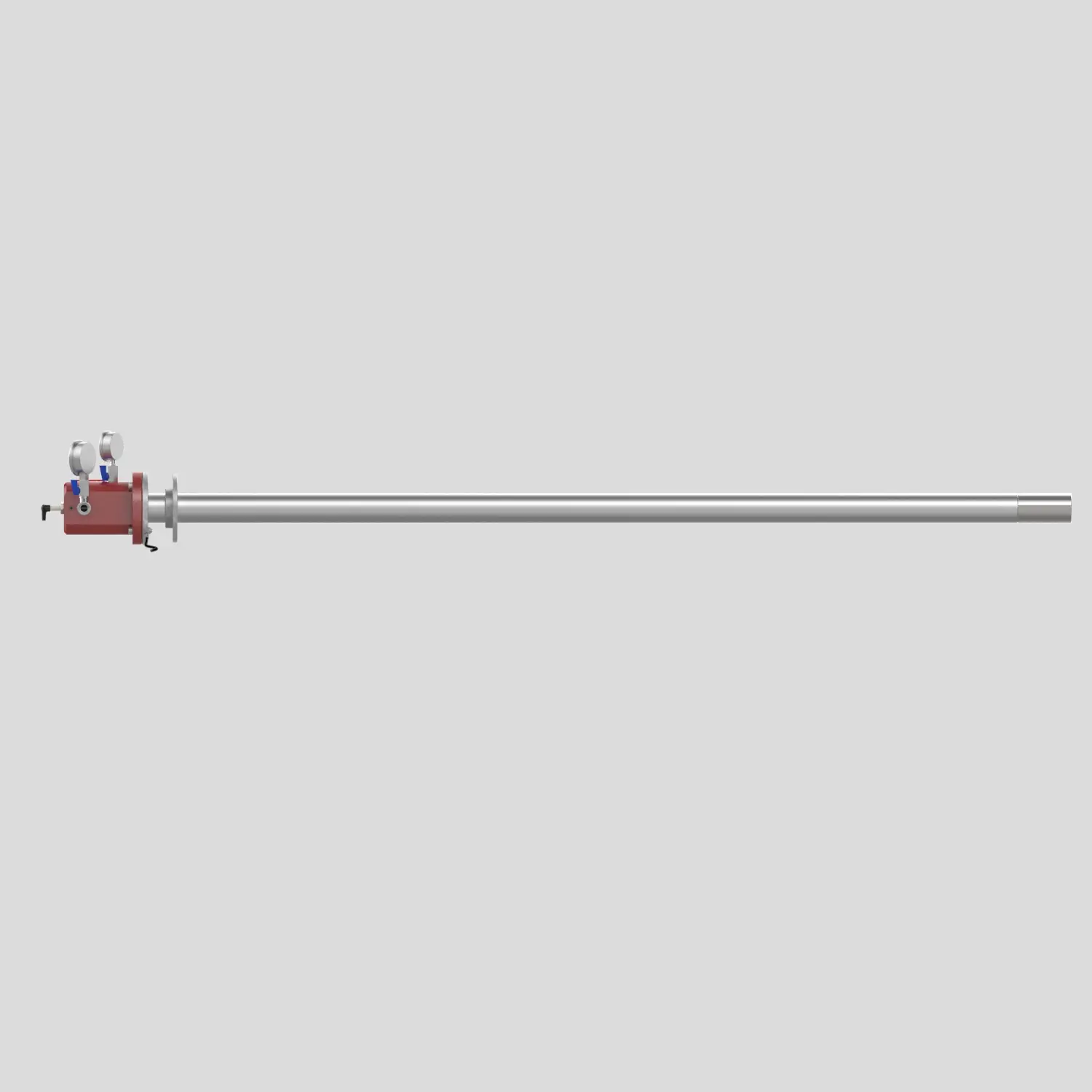

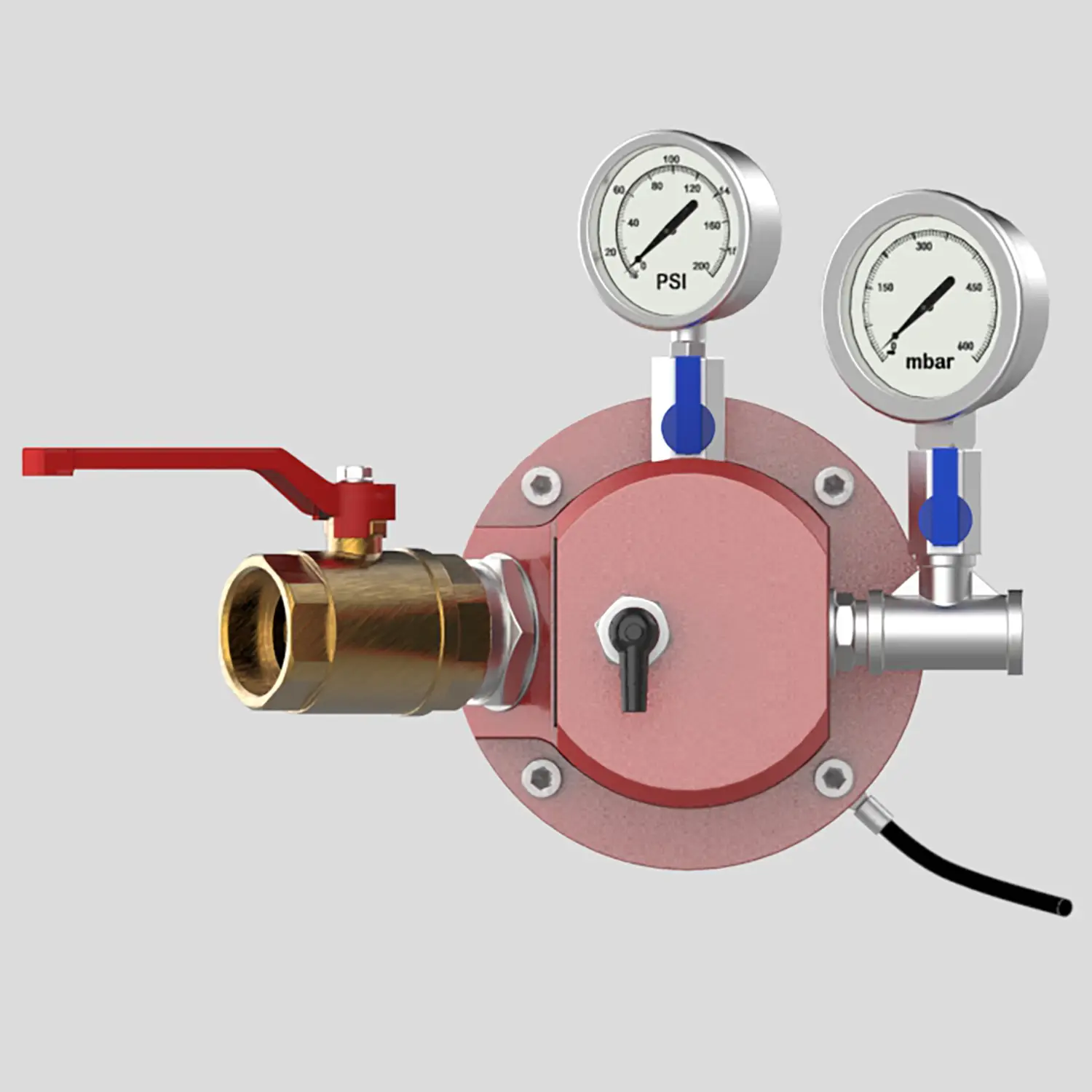

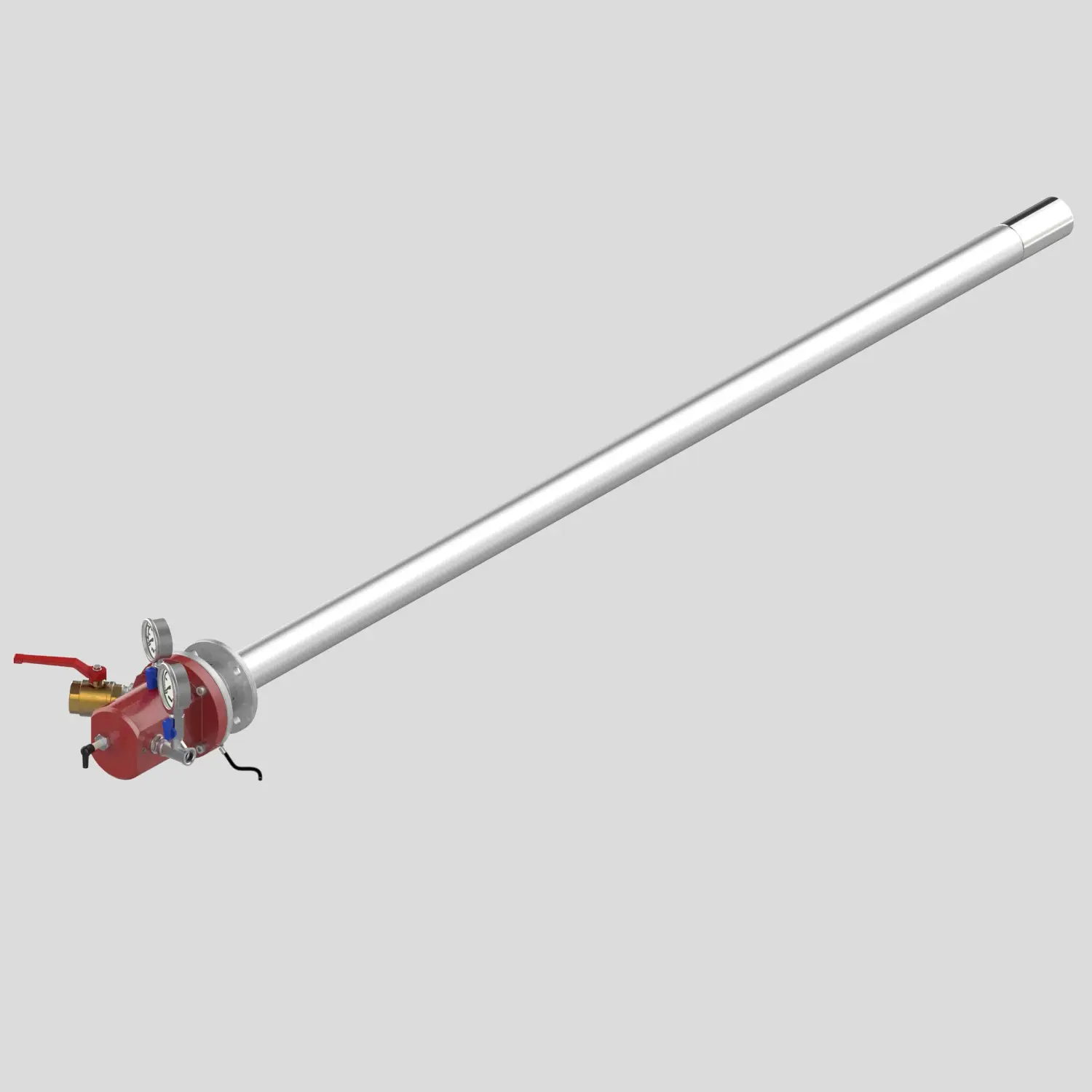

SKU: RIS206-500
| Technical Data | Value | Unit |
|---|---|---|
| Heat Rated Output | 250-500 / 215-430 | (kW) / (Mcal/h) |
| Turn Down Ratio | 1:2 | — |
| G20 Gas Rated Output | 250-500 | kW |
| G20 Gas Flow Rate | 25-50 | m3/h |
| G25 Gas Rated Output | 250-500 | kW |
| G25 Gas Flow Rate | 29-58 | m3/h |
| LPG Rated Output | 160-580 | kW |
| LPG Gas Flow Rate | 10-19 | m3/h |
| Gas Line Pressure (Low Pressure) | 400 | mbar |
| Input Gas Pipe Size (Low Pressure) | Rp 1/2 | — |
| Air Line Pressure (Low Pressure type) | Air Line Pressure (Low Pressure type) | — |
| Input air Pipe Size (Low Pressure) | Rp 1/4 | — |
| Electric Power Supply Phase | 1 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 220 | V |
| Total Dimension | 2060 x 315 x 233 | mm |
| Weight | ~18 | Kg |
| Burner Type | L1 | L2 | W1 | D1 | D2 | D3 | N | B.C.D |
|---|---|---|---|---|---|---|---|---|
| RIS-206-500 | 2060 | 1826 | 315 | 60 | 14 | 140 | 4 | 110 |
| Burner Card | |
|---|---|
| No file available | |
| Proposal | STP |
|---|---|
Download | Download |
PACKMAN Company was established in February, 1975. The company has started its activity in the field of producing High-Pressure Vessels such as Hot-Water Boilers, Steam Boilers, Pool Coil Tanks, Softeners and Heat Exchangers since 1984.
Newsletter
Register your inquiry request for the RIS-206-500 so that our experts will contact you as soon as possible.
