Gas Regulators; Significance and Function in Gas Supply Networks

In gas transmission and distribution systems, precise control of gas pressure and flow is crucial to ensure safety and optimize equipment performance. Gas regulators, as essential components, reduce high inlet pressures to safe, controlled levels suitable for various devices and operational processes. This article covers the types and components of gas regulators, methods for suitable selection, their industrial applications, and the role of reputable brands in ensuring safe and efficient operation of gas systems.

What is a Regulator?

A regulator is a device that keeps pressure steady within a system. When pressure from a tank or supply line changes, the regulator automatically adjusts the flow so the output pressure remains safe and stable. It prevents pressure fluctuations that could damage equipment or reduce efficiency.

Regulators are used for both gases and liquids in a wide range of applications — from household gas stoves and beverage systems to industrial processes and gas distribution networks.

What is a Gas Regulator?

A gas regulator is a device designed to control and maintain the pressure of gas flowing from a high-pressure source to a lower, safe, and constant level suitable for downstream equipment. It ensures that gas appliances, burners, or industrial systems receive a stable supply, preventing fluctuations that could damage equipment, reduce efficiency, or create safety hazards.

What is the Difference Between Pressure Reduction and Pressure Regulation?

Pressure Reduction is the process of lowering a high inlet pressure to a specific lower pressure. It is usually set to a fixed level, and works well when the system’s load does not vary much. This method is commonly used in simple gas pipelines, cylinders, or appliances where only a safe pressure drop is needed.

Pressure Regulation, in contrast, actively maintains a stable outlet pressure even when the upstream pressure or downstream flow changes. This dynamic adjustment ensures that gas appliances, burners, and industrial systems operate safely and efficiently under varying conditions.

Key Features of a Regulator

Regulators have several important characteristics that ensure they perform effectively and safely. These key features allow the regulator to maintain stable pressure, respond to changes in demand, and operate reliably under different conditions.

• Regulating and Stabilizing the Pressure: The primary function of a regulator is to reduce high and unstable input pressure to a stable and suitable output pressure, ensuring the safety and optimal performance of the system.
• Controlling Flow: These devices can adjust the fluid (gas or liquid) flow rate according to the system’s needs. This feature is particularly important in industries and critical applications.
• Stability in Output Pressure: A reliable regulator must have the ability to sustain a constant output pressure despite fluctuations in input pressure. This stability contributes to optimal operation of equipment which are connected to the regulator.
• Safety: These devices mitigate the risks of overpressure by regulating and controlling pressure and help reduce the risk of explosions or equipment failure.
• Prompt Response to Pressure Changes: A regulator must respond quickly to changes in input or output pressure to maintain system stability and prevent unsafe conditions.
• Flexibility: They can be designed for various types of gases and liquids, and are used in a wide range of industries, including residential, industrial, medical, and laboratory applications.
• Manual and Automatic Adjustment Capability: While some regulators allow for manual adjustment, advanced types can be automatically adjusted using electronic control systems.
• Compatibility with Various Environments: Regulators must be made of durable materials to withstand corrosion, heat, and extreme pressures in different environments.
• Durability and Lifespan: Regulators, due to their use in critical systems, must have high durability and reliability to operate long-term without the need for frequent repairs.
• Compatibility with Various Pressure Ranges: These devices are constructed from materials resistant to corrosion, high temperature, and extreme pressures, making them suitable for diverse industrial and environmental conditions.
• Simplifying the Operation of Gas and Liquid Systems: Regulators contribute to the ease of operation in gas or liquid systems by controlling pressure and flow. So, they reduce the complexities related to pressure control in these systems.

Main Components of a Gas Regulator

Gas regulators consist of multiple essential sections, each responsible for a particular role in pressure reduction and stabilization. Knowing these components provides a clearer insight into how the regulator works.

Body: The main structure, housing all other components and directing the gas flow through the device.”

Diaphragm: A flexible membrane that moves in response to pressure changes, transmitting force to the spring or control system.

Spring: Provides a counteracting force on the diaphragm and plays a key role in regulating the outlet pressure.

Valve Seat: The main passage that opens and closes in response to diaphragm and spring movement, controlling the gas flow and outlet pressure.

Filter: Prevents particles and contaminants from entering the regulator, protecting internal components. This feature is present in some models, as considered by the manufacturer in the design.

Adjustment Screw: Allows precise adjustment of the regulator’s output pressure within the specified design limits.

Inlet and Outlet Ports: Connection points for the gas system: high-pressure gas enters via the inlet, and regulated gas exits through the outlet.

How Does a Gas Regulator Work?

gas regulator function is to reduce high incoming gas pressure to a constant and appropriate level for the consumer. This is typically achieved through the diaphragm, spring, and internal valve, where the diaphragm senses pressure changes and its movement opens or closes the valve. Consequently, the regulator ensures that the output pressure remains stable and safe, despite changes in inlet pressure or demand.

Key Considerations in Selecting a Gas Regulator

Choosing the right gas regulator is essential for system safety, performance, and longevity. The following factors must be taken into account during selection:

Inlet and Outlet Pressure Range: The regulator must be compatible with the system’s operating pressure and capable of providing the required pressure for the equipment.

Gas Type: The regulator selection depends on the kind of gas being used, such as natural gas, LPG, or other industrial gases.

Flow Capacity: The regulator must handle the required gas volume without causing excessive pressure drop.

Body Resistance to Environmental Conditions: The regulator housing must resist corrosion, extreme temperatures, and high pressures, particularly with specialized fuels.

Standards and Certifications: Choosing regulators that comply with international standards and approvals ensures safer and more reliable performance.

Brand and After-Sales Service: Trusted brands with high manufacturing quality and dependable support provide greater assurance of safe and reliable operation.

Significance of using a Regulator

Using regulators in various gas and liquid systems is highly important due to the key role in regulating and controlling pressure. They not only enhance safety but also ensure optimal system performance. The primary reasons and significance of using a regulator are highlighted below.

1- Safety Maintenance: Regulators maintain gas or liquid pressure within a safe range, preventing incidents such as explosions, leaks, or damage to pipes and equipment, especially in systems handling flammable gases like natural gas or LPG.

2- Enhancing System Efficiency and Performance: Regulators ensure that systems operate at optimal and stable pressures, enhancing efficiency, reducing energy consumption, and optimizing processes.

3- Precise Pressure Control: In some industrial or laboratory applications, precise pressure control is required. Advanced regulators can precisely adjust pressure within specified ranges and prevent undesired fluctuations in the system. Furthermore, regulators can rapidly respond to changes in input pressure and regulate output pressure according to the system’s requirements.

4- Extending Equipment Lifespan:  By preventing sudden or uncontrolled pressure fluctuations, regulators protect equipment, extend its lifespan, and reduce maintenance and repair costs.

5- Improving Safety in Residential Applications: In petrochemical, oil, and gas industries, precise pressure control is crucial. Regulators are used in gas trains, refineries, and petrochemical facilities to ensure safety and manage complex processes. In medical applications, such as anesthesia machines and oxygen supply systems, precise regulators are essential for patient safety.

6- Application in Critical Industries: In petrochemical, oil, and gas sectors. precise control of gas and liquid pressure is critical. Regulators are used in gas trains, refineries, and petrochemical facilities as essential tools to ensure safety and manage complex processes. Additionally, in medical devices like anesthesia machines and oxygen supply systems, controlling gas pressure is vital, and precise regulators play a significant role in ensuring patient health and safety.

7- Controlling Flow and Optimizing Gas Consumption: Regulators control gas flow in heating and energy systems, optimizing fuel consumption and reducing energy costs.

8- Adaptation to Changing Environmental Conditions: Regulators adapt to environmental changes, such as temperature fluctuations or high-altitude conditions, maintaining optimal gas or liquid pressure in the system.

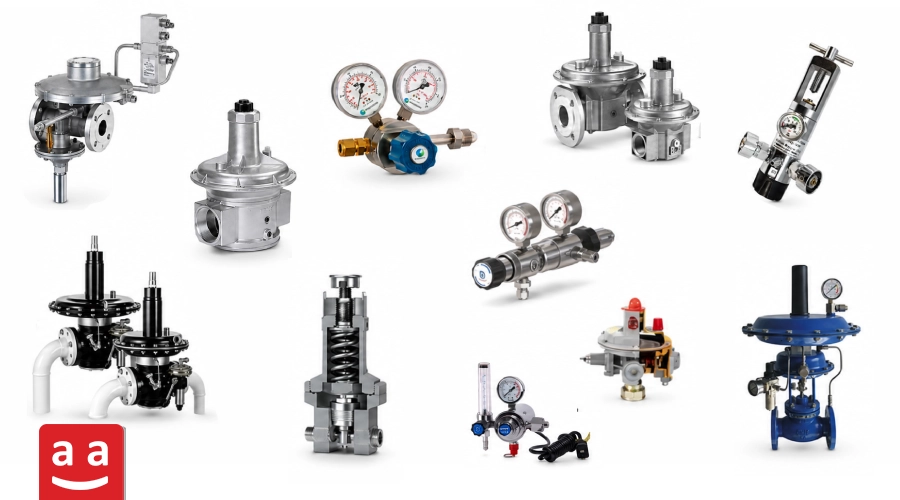

Different Types of Gas Regulators

Gas regulators are available in various types, classified by factors such as outlet pressure, number of pressure reduction stages, design, and control method, to meet the specific requirements of domestic, commercial, and industrial applications.

Regulator Types by Pressure Range

Gas regulators are categorized according to the outlet pressure they deliver. Each pressure range serves specific applications — from domestic appliances to industrial systems. Understanding these types helps in selecting the right regulator for safety, performance, and efficiency.

Zero Governor Regulators

It is a type of regulator that adjusts the outlet gas pressure to a level very close to zero, slightly above atmospheric pressure. This type is designed for systems that require extremely low gas pressure, such as specific industrial burners and boilers that need stable, low-pressure supply for proper operation. This near-zero pressure is achieved through an internal mechanism, typically consisting of a diaphragm and spring, which reduces the inlet gas pressure to a level close to zero.

Low pressure Regulators

This type of regulator is commonly used for gases like natural gas or propane, which are supplied at high pressure, and it reduces their pressure to a safe level for consumption by devices. The pressure adjustment in these types of regulators is done using a diaphragm and spring mechanism. The output pressure of such regulators typically ranges from 0 to 0.5 bar.

Medium Pressure Regulators

This type of regulator is used to adjust and reduce the inlet gas pressure within a medium pressure range. It is designed for systems that require a pressure higher than low pressure but lower than high pressure, and is commonly used in industrial, commercial, and some specific residential applications. The pressure adjustment in these types of regulators is done by a diaphragm and spring mechanism. The output pressure of these regulators typically ranges from 0.1 to 4 bar.

High Pressure Regulators

This type is used to adjust and reduce the inlet gas pressure in very high ranges. It is designed to reduce high-pressure gases to a controllable output pressure suitable for use in specific industrial, medical, and laboratory systems. Pressure regulation in these types of balancers is done by a diaphragm and spring mechanism, which operates through a control valve connected to the diaphragm and spring. The output pressure of these regulators typically ranges from 0.1 to 34 bar.

Regulator Type by Pressure Reduction Stage

Gas regulators can be classified based on the number of stages they use to reduce pressure:

Single Stage Regulators

This type is designed to reduce gas pressure from a higher level to a lower, stable level in a single stage. It is the simplest and one of the most commonly used types of regulators. The pressure regulation is accomplished by a diaphragm and spring mechanism, where the diaphragm transmits the gas pressure to the spring, reacting to fluctuations in the input pressure. The output pressure range for these devices typically falls between 0.1 to 5 bar.

Dual-Stage (Two Stage) Regulators

This type is specifically designed to reduce gas pressure in two stages. It is ideal for applications which demand more precise pressure control and better stability against input pressure fluctuations. The operation occurs as follows: during the first stage, the input gas pressure is reduced to an intermediate level, which is typically higher than the final output pressure. The intermediate pressure serves as a constant pressure for the second stage. In the second stage, the intermediate pressure is reduced to the final output pressure, which is then delivered to the consumer equipment. Pressure regulation in this type of regulator is achieved through the use of a valve and diaphragm. The output pressure range is generally between 0.1 and 5 bar.

Regulator Types by Design / Operation

Gas regulators can be categorized based on their internal design and how they control gas flow. This classification helps identify the best regulator type for specific applications, from simple domestic systems to complex industrial processes.

Pulse-Line Regulators

A pulse-line gas regulator is designed to control pressure using a specific method. This type is commonly used in industrial systems and applications that require precise pressure control, particularly where the gas flow fluctuates in a pulsed manner. In this type, pulse signals are sent to the regulator to adjust the pressure. Due to the use of pulse lines, these devices can regulate pressure and quickly respond to rapid changes in input pressure and load demand. The output pressure of these regulators typically ranges from 0.1 to 34 bar.

Pilot-Operated Regulators

It is designed for precise pressure control using a pilot system. This pilot system includes a separate control valve that sends the necessary signals to the main regulator to adjust the pressure. These types of regulators are typically designed for applications requiring high accuracy and complex conditions. The pressure adjustment in these regulators works as follows: The pilot valve independently controls the pressure on a smaller scale and sends signals to the main regulator. The main regulator then responds to the signals received from the pilot and adjusts the output pressure according to the pilot’s settings. The output pressure range of these regulators typically falls between 0.1 and 34 bar.

Self-Operated Regulators

This type automatically maintains and adjusts the output pressure without the need for continuous manual adjustment. This regulator automatically responds to changes in input pressure and operating conditions, keeping the output pressure at the desired level. The self-operated balancer continuously adjusts the output pressure to match changes in input pressure and operational conditions. The pressure adjustment in these devices is automatic, ensuring the output pressure remains optimized and stable. This adjustment can be either electronic or mechanical and typically involves continuous adjustments. The output pressure of these regulators typically ranges from 0.1 to 10 bar.

Electric Regulators

This type uses electric technologies instead of mechanical or manual methods to control and adjust gas pressure. These regulators are widely used, particularly in critical and complex systems, due to their high accuracy and automatic capabilities. Electric gas regulators are equipped with pressure and temperature sensors that send data to the control circuit. The electric circuits are responsible for adjusting and maintaining the pressure. These devices are highly precise, making them ideal for applications where consistent pressure is critical. The output pressure of these Regulators typically ranges from 0.1 bar to 34 bar, though the specific range can vary depending on the type and specific application of the regulator.

Piston-Type Regulators

It is a type of gas regulator that uses a piston as the main element for adjusting and controlling pressure. These regulators are widely used in various industrial and commercial applications due to their high precision and specific capabilities in pressure regulation. The pressure adjustment in these regulators operates by the piston responding to changes in input pressure. The piston mechanically adjusts the output pressure, with the output pressure being regulated through the movement of the piston. The output pressure of these regulators typically ranges from 0.5 bar to 15 bar.

Choosing the Right Gas Regulator

Selecting the appropriate gas regulator is extremely important for ensuring safety, efficiency, and reliable operation of any gas system. Factors to consider include the type of gas, operating pressure range, flow requirements, system application (residential, commercial, or industrial), and environmental conditions. Additionally, the regulator’s design, material compatibility, and certification standards should match the intended use. Proper selection helps prevent pressure fluctuations, equipment damage, and potential safety hazards, making it essential to carefully evaluate each regulator based on both technical specifications and system requirements.

Top Gas Regulator Brands in the Market

Determining the best gas regulator brand can be challenging, as quality levels are often similar, requirements vary, and expert opinions may be influenced by personal preferences. Nevertheless, some well-known international brands include Dungs, Kromschroder, RMG, Madas, and Elster Jeavon, all recognized for their reliability and performance in gas systems.

To choose the right gas regulator, you should define your system’s specific needs and seek advice from qualified professionals to select a brand that aligns optimally with your requirements.

Gas Regulator; An Intelligent Choice for Seamless Operation

Ultimately, gas regulators are crucial for ensuring safety, efficiency, and reliable operation in gas systems. By reducing high gas pressure to stable and appropriate levels, they prevent serious hazards such as explosions, leaks, and equipment failures. Various models are produced, including low-pressure, medium-pressure, high-pressure, pilot-operated, zero governor, single-stage, two-stage, self-operated, electric, and piston-type regulators.

Choosing the proper regulator is determined by the system’s needs, the type of gas, pressure levels, and surrounding conditions. Well-established brands with strong quality standards offer not only reliable performance but also comprehensive after-sales support. Consequently, precise selection of the regulator and brand allows gas systems to operate efficiently and helps avoid risks and operational failures.

Frequently Asked Questions (FAQ) about Gas Regulators

1- What Is a Gas Regulator and How Does It Work?

It is a device that reduces the inlet gas pressure to a constant, suitable outlet pressure and maintains it to ensure equipment safety and performance.

2- What Types of Gas Regulators Are There?

Gas regulators can be classified based on pressure range, number of pressure reduction stages, and design or operation. Regulators include low-, medium-, and high-pressure regulators, as well as zero governors. They can be single-stage or dual-stage depending on how they reduce pressure. They also vary by design, such as electric, piston-type, pilot-operated, self-operated, and pulse-line regulators.

3- What Are the Three Main Components That Control Pressure in a Regulator?

Pressure regulation relies on three primary elements: the diaphragm for detecting pressure changes, the spring for applying reference force, and the valve seat for controlling gas flow through opening and closing.

4- Why Is Installing a Gas Regulator Essential for Safety in Gas-Fired Systems?

Since the pressure in gas supply lines often exceeds the tolerance of appliances, a regulator keeps it stable within a safe limit, protecting against leaks, equipment failure, fire, and explosions.

5- What Are the Typical Applications of High-Pressure and Low-Pressure Gas Regulators?

High-pressure regulators are typically used to reduce gas pressure from compressed cylinders or in main industrial gas pipelines. Low-pressure regulators lower the pressure to usable levels for household (e.g., stoves and heaters) or commercial equipment.

6- Where are gas regulators commonly used?

Gas regulators are used wherever controlled gas pressure is required, including domestic appliances (stoves, heaters), industrial burners and boilers, welding systems, and laboratory or process gas systems.
