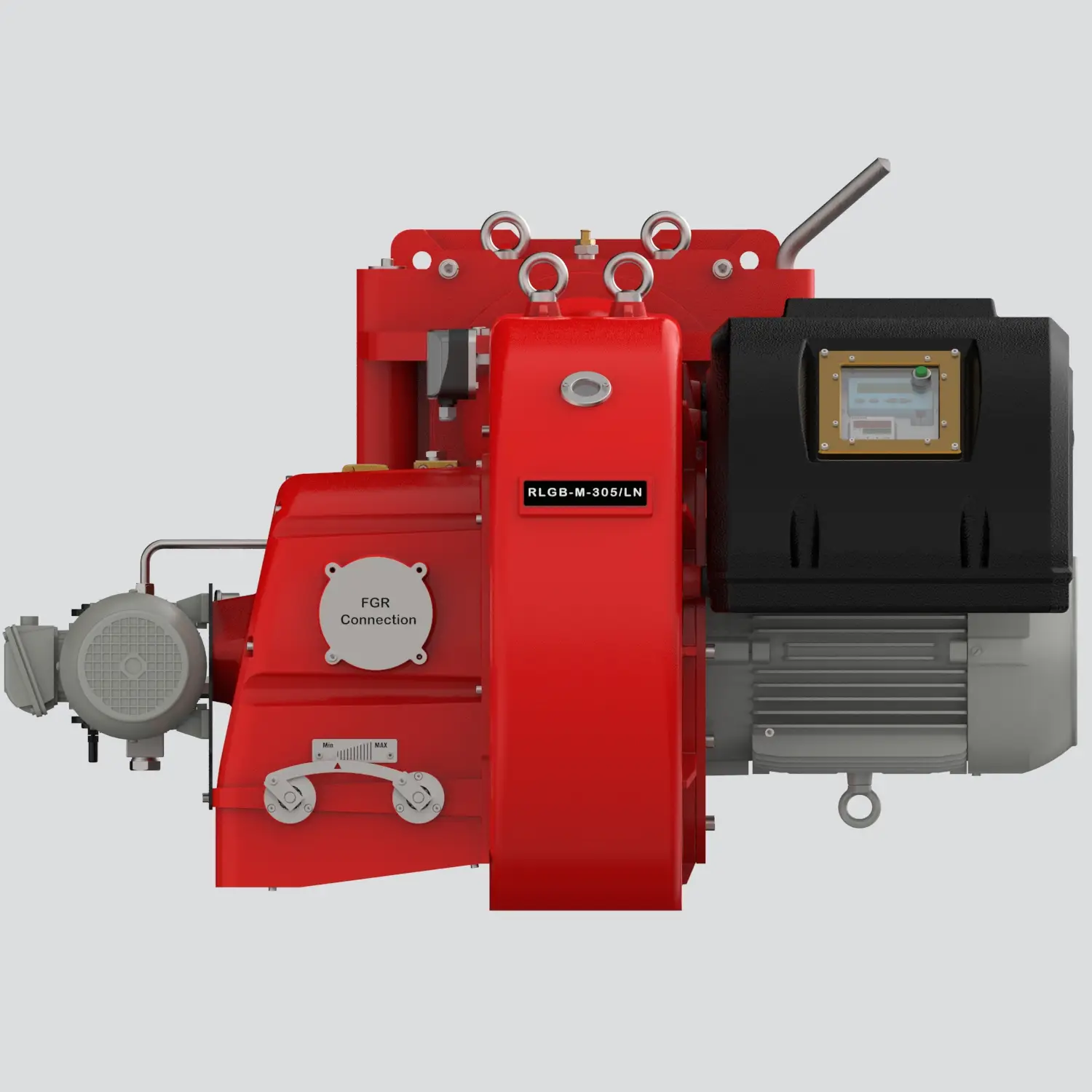

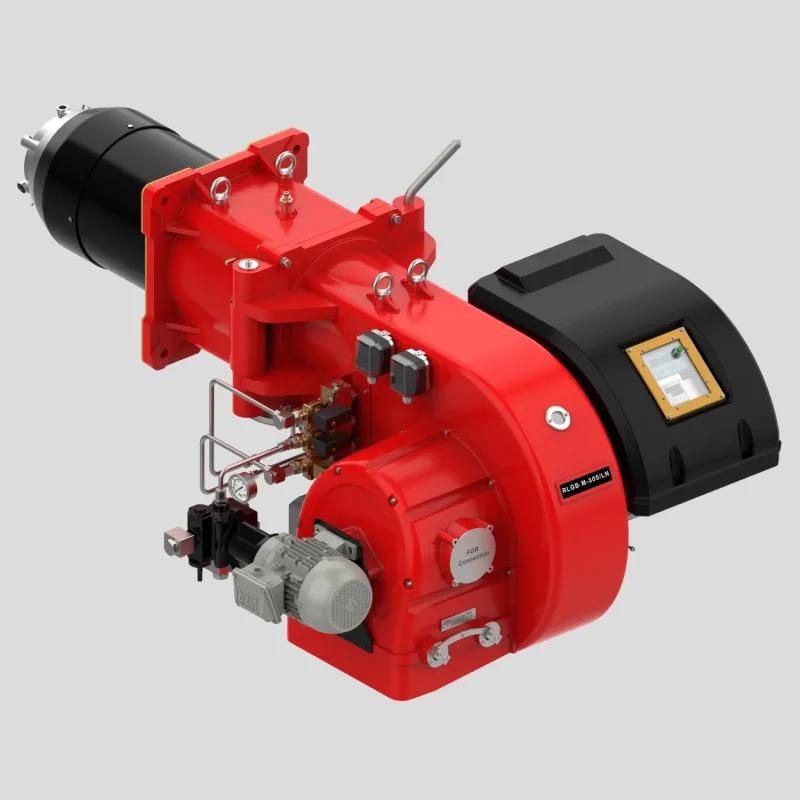

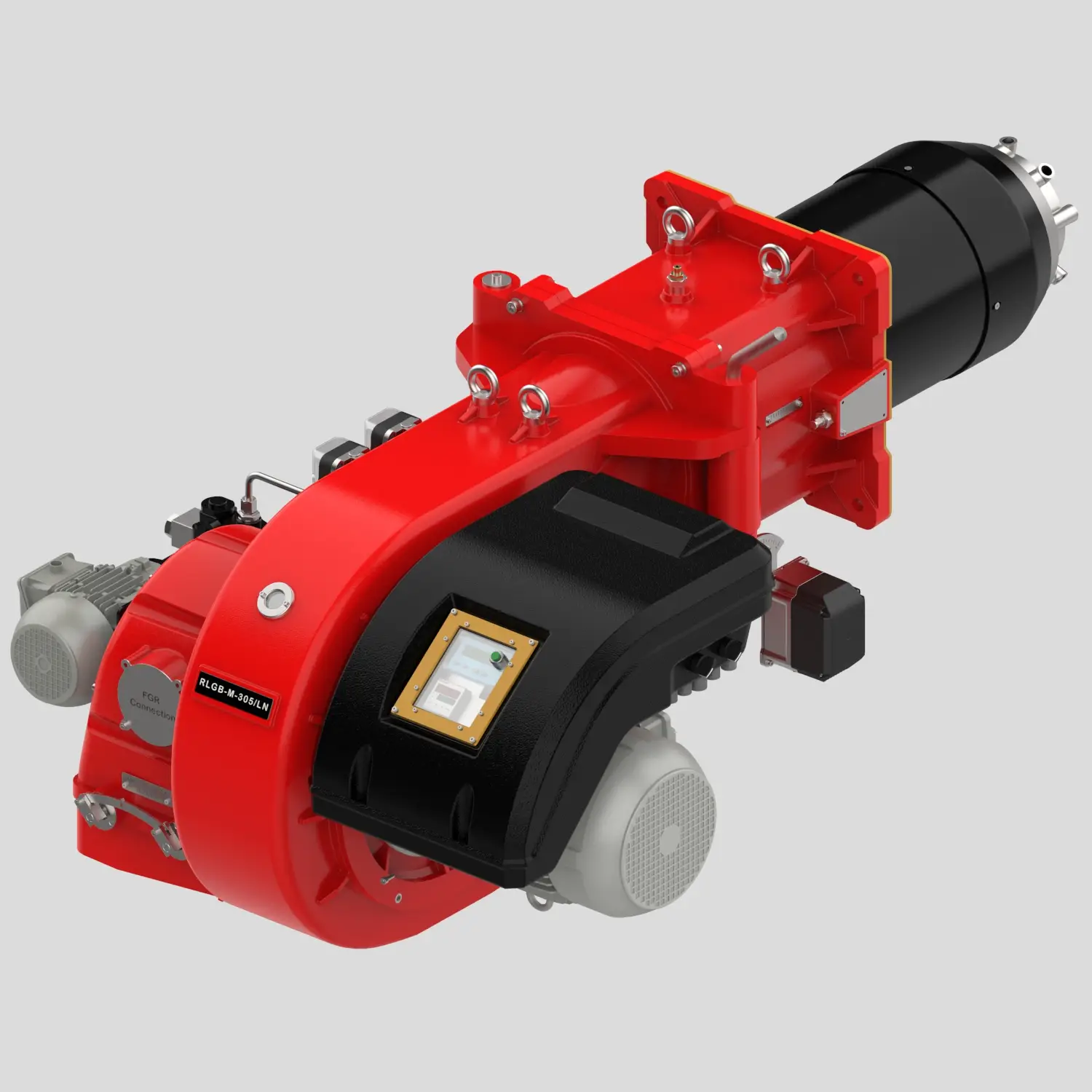

RLGB-M-305/LN

Low Nox Burner
Power: 3000 (kW)

SKU: RLGBM305LN

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
600-3000 / 516-2581
(kW) / (Mcal/h)
NOx Class
III
Turn Down Ratio
1:5
G20 Gas Rated Output
600-3000
kW
G20 Gas Flow Rate
60-300
m3/h
G25 Gas Rated Output
600-3000
kW
G25 Gas Flow Rate
70-349
m3/h
LPG Rated Output
650-3500
kW
LPG Gas Flow Rate
25-116
m3/h
Light Oil Rated Output
600-3000
kW
Light Oil Flow Rate
51-253
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
92-360
mbar
Gas Line Pressure (High Pressure type)
1-4
bar
Input Gas Pipe Size (Low Pressure)
DN65
Input Gas Pipe Size (High Pressure)
DN65
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
7.5
kW
Fan Motor Speed
2940
rpm
Pump Model
TA3
Pump Motor Power
1.5
kW
Pump Motor Speed
2850
rpm
Gas Operation Mode
Electrical Modular
Oil Operation Mode
Double Stage
Centrifugal Fan
315x104x38
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
1683x1137x741
mm
Weight
260
Kg

Burner Type L1 L2 L3 H1 H2 D1 D2 D3 D4 N N1 N2 B.C.D B.C.D1 B.C.D2
RLGB-M-305/LN
1683
514
1137
741
413
328
20
--
--
4
--
--
490
--
--

Gas Operation
Nox (mg/kW.h)
CO (ppm)
80
20
Light Oil Operation
Nox (mg/kW.h)
CO (ppm)
170
30

Gas Operation

Nox (mg/kW.h) CO (ppm)
80
20

Light Oil Operation

Nox (mg/kW.h) CO (ppm)
170
30
