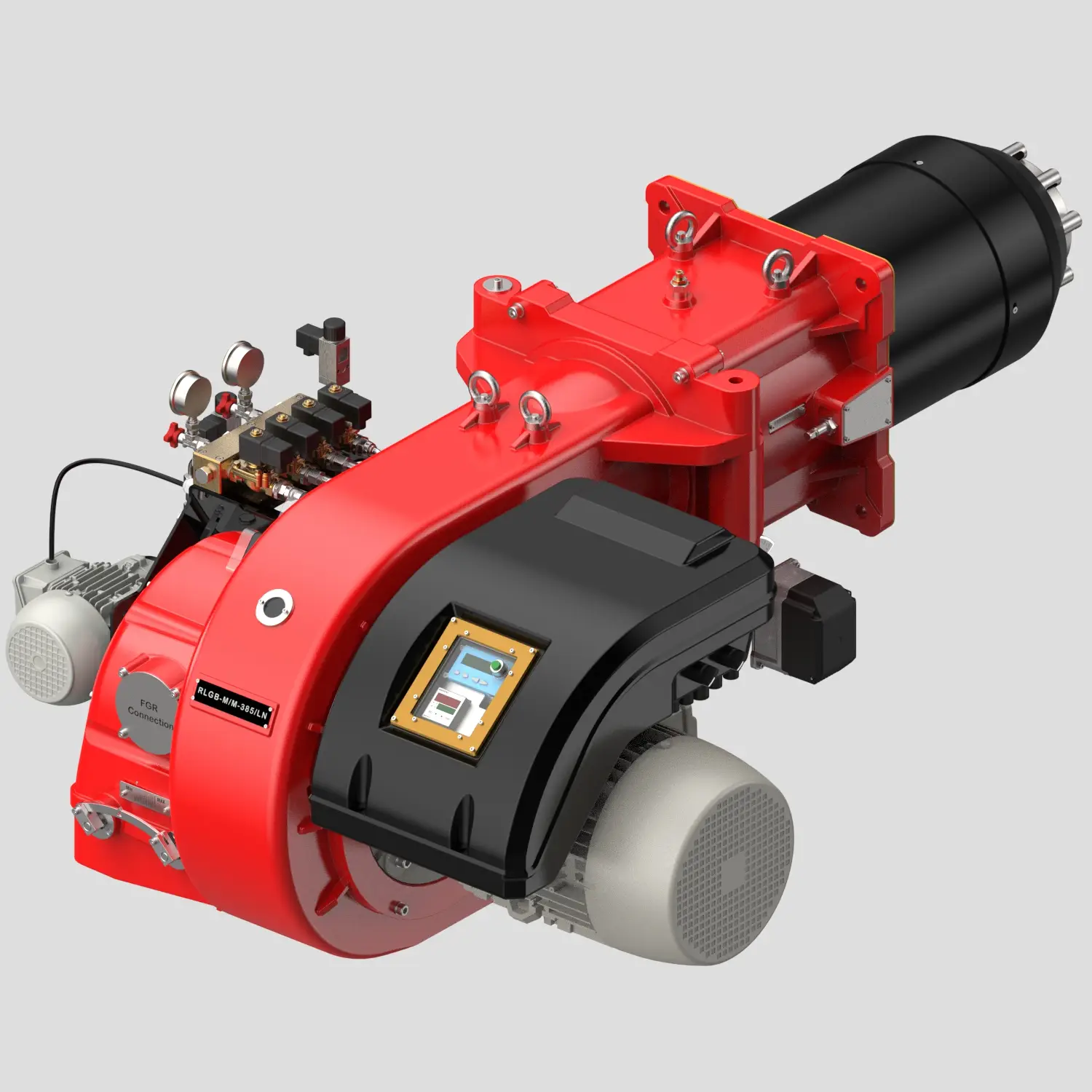

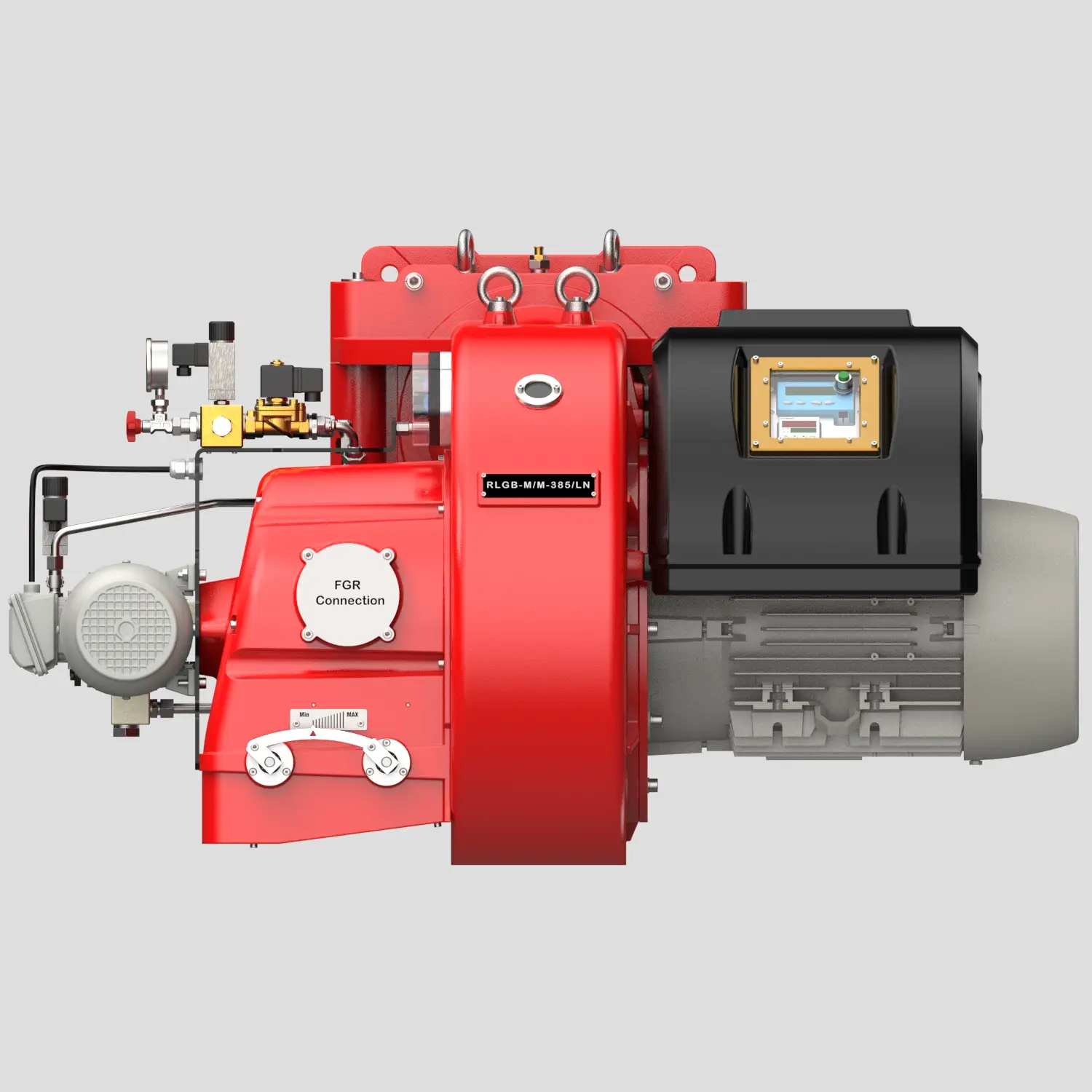

SKU: RLGBMM385LN
| Technical Data | Value | Unit |
|---|---|---|
| Heat Rated Output | 650-3500 / 559-3011 | (kW) / (Mcal/h) |
| NOx Class | III | — |
| Turn Down Ratio | 1:5 | — |
| G20 Gas Rated Output | 650-3500 | kW |
| G20 Gas Flow Rate | 65-350 | m3/h |
| G25 Gas Rated Output | 650-3500 | kW |
| G25 Gas Flow Rate | 76-407 | m3/h |
| LPG Rated Output | 700-3500 | kW |
| LPG Gas Flow Rate | 27-136 | m3/h |
| Light Oil Rated Output | 650-3500 | kW |
| Light Oil Flow Rate | 55-295 | kg/h |
| Heavy Oil Rated Output | -- | kW |
| Heavy Oil Flow Rate | -- | kg/h |
| Gas Line Pressure (Low Pressure) | 75-360 | mbar |
| Gas Line Pressure (High Pressure Type) | 1-4 | bar |
| Input Gas Pipe Size (Low Pressure) | DN 80 | — |
| Input Gas Pipe Size (High Pressure) | DN 65 | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 7.5 | kW |
| Fan Motor Speed | 2840 | rpm |
| Pump Model | TA3 | — |
| Pump Motor Power | 1.5 | kW |
| Pump Motor Speed | 2850 | rpm |
| Gas Operation Mode | Electrical Modular | — |
| Oil Operation Mode | Electrical Modular | — |
| Centrifugal Fan | 363x103x38 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |
| Total Dimension | 1683x1249x741 | mm |
| Weight | 240 | Kg |
| Technical Data | Value | Unit |
|---|---|---|
| Heat Rated Output | 650-3500 / 559-3011 | (kW) / (Mcal/h) |
| NOx Class | III | — |
| Turn Down Ratio | 1:5 | — |
| G20 Gas Rated Output | 650-3500 | kW |
| G20 Gas Flow Rate | 65-350 | m3/h |
| G25 Gas Rated Output | 650-3500 | kW |
| G25 Gas Flow Rate | 76-407 | m3/h |
| LPG Rated Output | 700-3500 | kW |
| LPG Gas Flow Rate | 27-136 | m3/h |
| Light Oil Rated Output | 55-295 | kW |
| Light Oil Flow Rate | -- | kg/h |
| Heavy Oil Rated Output | -- | kW |
| Heavy Oil Flow Rate | -- | kg/h |
| Gas Line Pressure (Low pressure) | 75-360 | mbar |
| Gas Line Pressure (High Pressure type) | 1-4 | bar |
| Input Gas Pipe Size (Low Pressure) | DN 80 | — |
| Input Gas Pipe Size (High Pressure) | DN 65 | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 7.5 | kW |
| Fan Motor Speed | 2840 | rpm |
| Pump Model | TA3 | — |
| Pump Motor Power | 1.5 | kW |
| Pump Motor Speed | 2850 | rpm |
| Gas Operation Mode | Electrical Modular | — |
| Oil Operation Mode | Electrical Modular | — |
| Centrifugal Fan | 363x103x38 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |
| Total Dimension | 1683x1249x741 | mm |
| Weight | 240 | Kg |
| Burner Type | L1 | L2 | L3 | W1 | H1 | H2 | D1 | D2 | D3 | D4 | N | N1 | N2 | B.C.D | B.C.D1 | B.C.D2 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RLGB-M/M-385/LN | 1683 | 514 | 427 | 1249 | 741 | 413 | 328 | 20 | -- | -- | 4 | -- | -- | 490 | -- | -- | ||||
| Burner Type | L1 | L2 | W1 | L3 | L4 | L5 | L6 | L7 | H1 | H2 | D1 | D2 | D3 | D4 | N | N1 | N2 | B.C.D | B.C.D1 | B.C.D2 | RLGB-M/M-385/LN | 1683 | 514 | 1249 | 427 | -- | -- | -- | -- | 741 | 413 | 328 | 20 | -- | -- | 4 | -- | -- | 490 | -- | -- |
|---|
| Gas Operation | |
|---|---|
| Nox (mg/kW.h) | CO (ppm) |
| 80 | 20 |
| Light Oil Operation | |
|---|---|
| Nox (mg/kW.h) | CO (ppm) |
| 170 | 30 |
| Burner Card | |
|---|---|
| Download | |
| Proposal | STP |
|---|---|
| Download If you need STP and Proposal files, you need a VIP account. | Download If you need STP and Proposal files, you need a VIP account. |
