Power: 10500 (kW) |

SKU: RLGBMM1050 |

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
1000-10500 / 860-9034
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:10
G20 Gas Rated Output
1000-10500
kW
G20 Gas Flow Rate
100-1050
m3/h
G25 Gas Rated Output
1000-10500
kW
G25 Gas Flow Rate
116-1221
m3/h
LPG Rated Output
1500-10500
kW
LPG Gas Flow Rate
58-407
m3/h
Light Oil Rated Output
2100-10500
kW
Light Oil Flow Rate
177-885
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
235-360
mbar
Gas Line Pressure (High Pressure type)
4
bar
Input Gas Pipe Size (Low Pressure)
DN 100
Input Gas Pipe Size (High Pressure)
DN 100
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
22
kW
Fan Motor Speed
2840
rpm
Pump Model
T3
Pump Motor Power
2.2
kW
Pump Motor Speed
2840
rpm
Gas Operation Mode
Electrical Modular
Oil Operation Mode
Electrical Modular
Centrifugal Fan
595x166x48
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
2353x1555x1046
mm
Weight
598
Kg

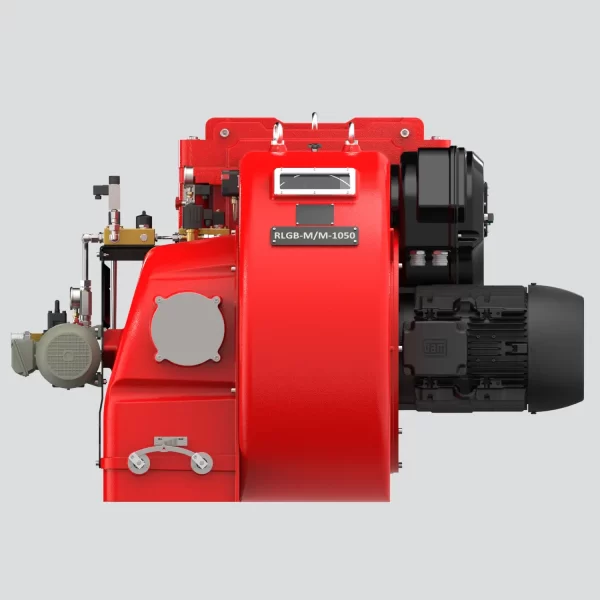

RLGB-M/M-1050

Power: 10500 (kW)

SKU: RLGBMM1050

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
1000-10500 / 860-9034
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:10
G20 Gas Rated Output
1000-10500
kW
G20 Gas Flow Rate
100-1050
m3/h
G25 Gas Rated Output
1000-10500
kW
G25 Gas Flow Rate
116-1221
m3/h
LPG Rated Output
1500-10500
kW
LPG Gas Flow Rate
58-407
m3/h
Light Oil Rated Output
2100-10500
kW
Light Oil Flow Rate
177-885
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
235-360
mbar
Gas Line Pressure (High Pressure type)
4
bar
Input Gas Pipe Size (Low Pressure)
DN 100
Input Gas Pipe Size (High Pressure)
DN 100
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
22
kW
Fan Motor Speed
2840
rpm
Pump Model
T3
Pump Motor Power
2.2
kW
Pump Motor Speed
2840
rpm
Gas Operation Mode
Electrical Modular
Oil Operation Mode
Electrical Modular
Centrifugal Fan
595x166x48
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
2353x1555x1046
mm
Weight
598
Kg

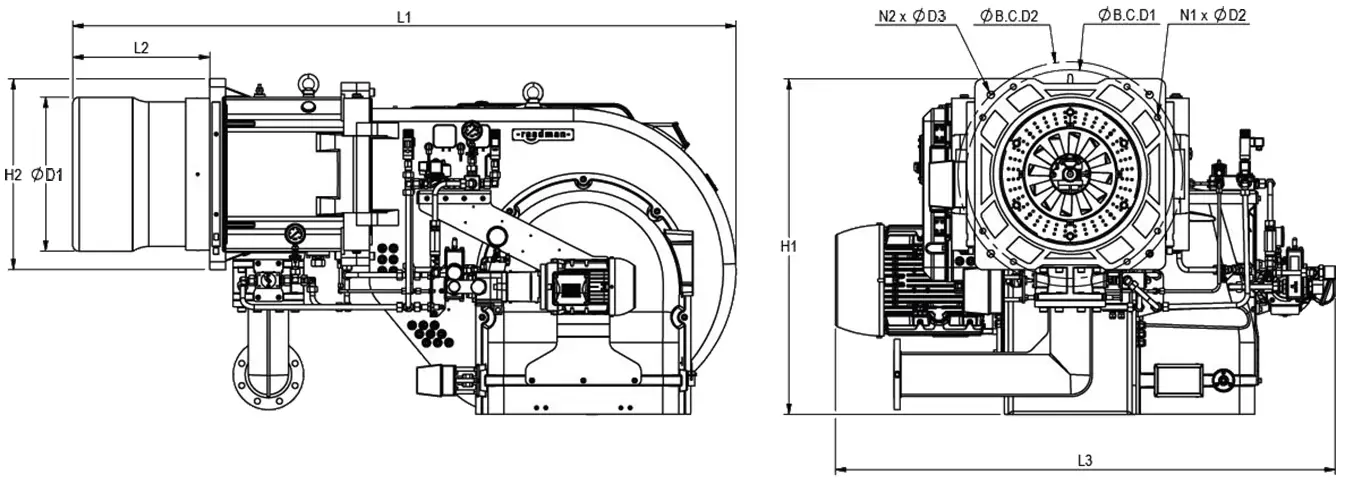

Burner Type L1 L2 L3 W1 H1 H2 D1 D2 D3 D4 N N1 N2 B.C.D B.C.D1 B.C.D2
RLGB-M/M-1050
2353
428
1559
1046
595
484
17.5
22
8
4
650
700
Gas Operation
Nox (mg/kW.h)
CO (ppm)
120
30
Light Oil Operation
Nox (mg/kW.h)
CO (ppm)
170
30

Gas Operation

Nox (mg/kW.h) CO (ppm)
120
30

Light Oil Operation

Nox (mg/kW.h) CO (ppm)
170
30
