SKU: RGBMS305
| Technical Data | Value | Unit |
|---|---|---|
| Heat Rated Output | 600-3000 / 516-2580 | (kW) / (Mcal/h) |
| NOx Class | II | — |
| Turn Down Ratio | 1:5 | — |
| G20 Gas Rated Output | 600-3000 | kW |
| G20 Gas Flow Rate | 60-300 | m3/h |
| G25 Gas Rated Output | 600-3000 | kW |
| G25 Gas Flow Rate | 70-349 | m3/h |
| LPG Rated Output | 650-3000 | kW |
| LPG Gas Flow Rate | 25-116 | m3/h |
| Light Oil Rated Output | -- | kW |
| Light Oil Flow Rate | -- | kg/h |
| Heavy Oil Rated Output | -- | kW |
| Heavy Oil Flow Rate | -- | kg/h |
| Gas Line Pressure (Low Pressure) | 89-360 | mbar |
| Gas Line Pressure (High Pressure Type) | 1-4 | bar |
| Input Gas Pipe Size (Low Pressure) | DN 65 | — |
| Input Gas Pipe Size (High Pressure) | DN 65 | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 7.5 | kW |
| Fan Motor Speed | 2900 | rpm |
| Pump Model | -- | — |
| Pump Motor Power | -- | kW |
| Pump Motor Speed | -- | rpm |
| Gas Operation Mode | Mechanical Staging | — |
| Oil Operation Mode | -- | — |
| Centrifugal Fan | 315x104x38 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |
| Total Dimension | 1690x927x741 | mm |
| Weight | 210 | Kg |
| Technical Data | Value | Unit |
|---|---|---|
| Heat Rated Output | 600-3000 / 516-2580 | (kW) / (Mcal/h) |
| NOx Class | II | — |
| Turn Down Ratio | 1:5 | — |
| G20 Gas Rated Output | 600-3000 | kW |
| G20 Gas Flow Rate | 60-300 | m3/h |
| G25 Gas Rated Output | 600-3000 | kW |
| G25 Gas Flow Rate | 70-349 | m3/h |
| LPG Rated Output | 650-3000 | kW |
| LPG Gas Flow Rate | 25-116 | m3/h |
| Light Oil Rated Output | -- | kW |
| Light Oil Flow Rate | -- | kg/h |
| Heavy Oil Rated Output | -- | kW |
| Heavy Oil Flow Rate | -- | kg/h |
| Gas Line Pressure (Low pressure) | 89-360 | mbar |
| Gas Line Pressure (High Pressure type) | 1-4 | bar |
| Input Gas Pipe Size (Low Pressure) | DN 65 | — |
| Input Gas Pipe Size (High Pressure) | DN 65 | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 7.5 | kW |
| Fan Motor Speed | 2900 | rpm |
| Pump Model | -- | — |
| Pump Motor Power | -- | kW |
| Pump Motor Speed | -- | rpm |
| Gas Operation Mode | Mechanical Staging | — |
| Oil Operation Mode | -- | — |
| Centrifugal Fan | 315x104x38 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |
| Total Dimension | 1690x927x741 | mm |
| Weight | 210 | Kg |

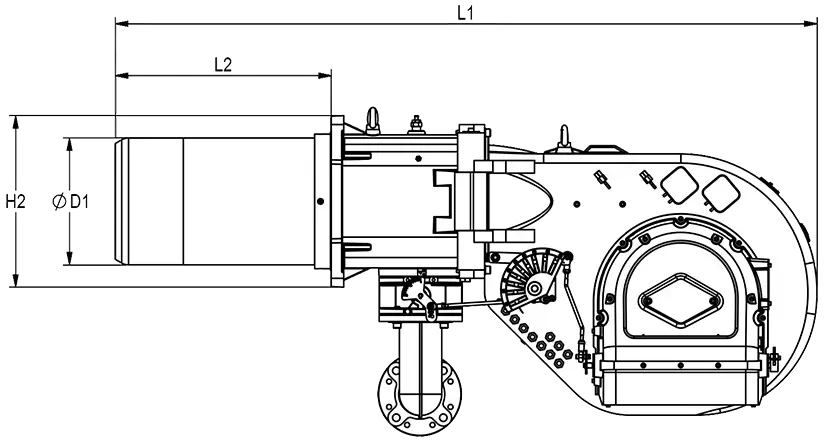

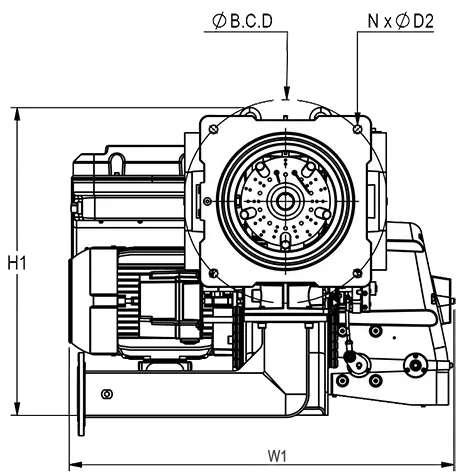

| Burner Type | L1 | L2 | L3 | W1 | H1 | H2 | D1 | D2 | D3 | D4 | N | N1 | N2 | B.C.D | B.C.D1 | B.C.D2 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RGB-MS-305 | 1689 | 519.5 | -- | 927 | 741 | 413 | 325 | 20 | -- | -- | 4 | -- | -- | 490 | -- | -- | ||||
| Burner Type | L1 | L2 | W1 | L3 | L4 | L5 | L6 | L7 | H1 | H2 | D1 | D2 | D3 | D4 | N | N1 | N2 | B.C.D | B.C.D1 | B.C.D2 | RGB-MS-305 | 1689 | 519.5 | 927 | -- | 741 | 413 | 325 | 20 | -- | -- | 4 | -- | -- | 490 | -- | -- |
|---|
| Gas Operation | |
|---|---|
| Nox (mg/kW.h) | CO (ppm) |
| 120 | 30 |
| Light Oil Operation | |
|---|---|
| Nox (mg/kW.h) | CO (ppm) |
| -- | -- |
| Heavy Oil Operation | |
|---|---|
| Nox (mg/kW.h) | CO (ppm) |
| -- | -- |
| Burner Card | |
|---|---|
| Download | |
| Proposal | STP |
|---|---|
| Download If you need STP and Proposal files, you need a VIP account. | Download If you need STP and Proposal files, you need a VIP account. |
