SKU: RGB205
Technical Data | Value | Unit |
---|---|---|
Heat Rated Output | 490-2250 / 422-1936 | (kW) / (Mcal/h) |
NOx Class | II | — |
Turn Down Ratio | 1:4 | — |
G20 Gas Rated Output | 490-2250 | kW |
G20 Gas Flow Rate | 49-225 | m3/h |
G25 Gas Rated Output | 490-2250 | kW |
G25 Gas Flow Rate | 57-262 | m3/h |
LPG Rated Output | 500-2250 | kW |
LPG Gas Flow Rate | 19-87 | m3/h |
Light Oil Rated Output | kW | |
Light Oil Flow Rate | -- | kg/h |
Heavy Oil Rated Output | -- | kW |
Heavy Oil Flow Rate | -- | kg/h |
Gas Line Pressure (Low Pressure) | 104-360 | mbar |
Gas Line Pressure (High Pressure Type) | 0 | bar |
Input Gas Pipe Size (Low Pressure) | Rp 2 | — |
Input Gas Pipe Size (High Pressure) | — | |
Electric Power Supply Phase | 3 | ph |
Electric Power Supply Frequency | 50 | Hz |
Electric Power Supply Voltage | 380-400 | V |
Fan Electrical Motor Power | 4 | kW |
Fan Motor Speed | 2840 | rpm |
Pump Model | — | |
Pump Motor Power | kW | |
Pump Motor Speed | rpm | |
Gas Operation Mode | Double Stage | — |
Oil Operation Mode | -- | — |
Centrifugal Fan | 360x66x28 | mm |
IP (With reference to ISIRI 2868) | 43 | — |
Total Dimension | 1220x670x600 | mm |
Weight | 90 | Kg |
Technical Data | Value | Unit |
---|---|---|
Heat Rated Output | 490-2250 / 422-1936 | (kW) / (Mcal/h) |
NOx Class | II | — |
Turn Down Ratio | 1:4 | — |
G20 Gas Rated Output | 490-2250 | kW |
G20 Gas Flow Rate | 49-225 | m3/h |
G25 Gas Rated Output | 490-2250 | kW |
G25 Gas Flow Rate | 57-262 | m3/h |
LPG Rated Output | 500-2250 | kW |
LPG Gas Flow Rate | 19-87 | m3/h |
Light Oil Rated Output | -- | kW |
Light Oil Flow Rate | -- | kg/h |
Heavy Oil Rated Output | -- | kW |
Heavy Oil Flow Rate | -- | kg/h |
Gas Line Pressure (Low pressure) | 104-360 | mbar |
Gas Line Pressure (High Pressure type) | bar | |
Input Gas Pipe Size (Low Pressure) | Rp 2 | — |
Input Gas Pipe Size (High Pressure) | — | |
Electric Power Supply Phase | 3 | ph |
Electric Power Supply Frequency | 50 | Hz |
Electric Power Supply Voltage | 380-400 | V |
Fan Electrical Motor Power | 4 | kW |
Fan Motor Speed | 2840 | rpm |
Pump Model | — | |
Pump Motor Power | kW | |
Pump Motor Speed | rpm | |
Gas Operation Mode | Double Stage | — |
Oil Operation Mode | -- | — |
Centrifugal Fan | 360x66x28 | mm |
IP (With reference to ISIRI 2868) | 43 | — |
Total Dimension | 1220x670x600 | mm |
Weight | 90 | Kg |

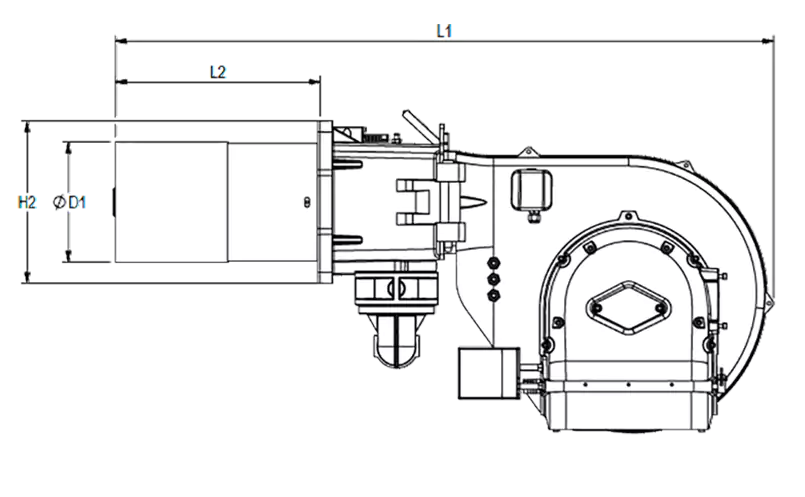

Burner Type | L1 | L2 | L3 | W1 | H1 | H2 | D1 | D2 | D3 | D4 | N | N1 | N2 | B.C.D | B.C.D1 | B.C.D2 | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RGB-205 | 1220 | 380 | -- | 666 | 600 | 302 | 223 | 18 | 4 | -- | -- | -- | 323 | 367 |
Burner Type | L1 | L2 | W1 | L3 | L4 | L5 | L6 | L7 | H1 | H2 | D1 | D2 | D3 | D4 | N | N1 | N2 | B.C.D | B.C.D1 | B.C.D2 | RGB-205 | 1220 | 380 | 666 | -- | 600 | 302 | 223 | 18 | 4 | -- | -- | -- | 323 | 367 |
---|
Gas Operation | |
---|---|
Nox (mg/kW.h) | CO (ppm) |
120 | 30 |
