| Heat Rated Output | 2500-20000 / 2152-17209 | (kW) / (Mcal/h) |
| NOx Class | II | — |
| Turn Down Ratio | 1:8 | — |
| G20 Gas Rated Output | 2500-20000 | kW |
| G20 Gas Flow Rate | 250-2000 | m³/h |
| G25 Gas Rated Output | 2500-20000 | kW |
| G25 Gas Flow Rate | 291-2326 | m³/h |
| LPG Rated Output | 2500-20000 | kW |
| LPG Gas Flow Rate | 907-776 | m³/h |
| Gas Line Pressure (Low Pressure) | 364-500 | mbar |
| Gas Line Pressure (High Pressure Type) | 2-4 | bar |
| Input Gas Pipe Size (Low Pressure) | DN 150 | — |
| Input Gas Pipe Size (High Pressure) | DN 125 | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 55 | kW |
| Fan Motor Speed | 2950 | rpm |
| Gas Operation Mode | Electrical Modular | — |
| Centrifugal Fan | 770x194x65 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |

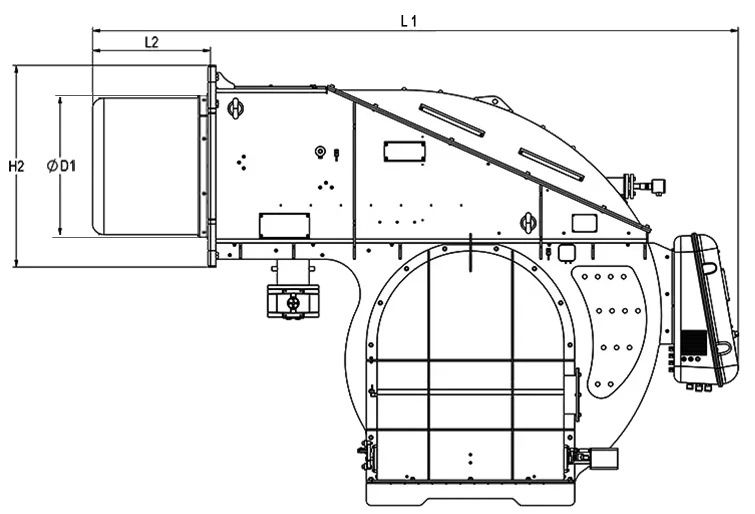

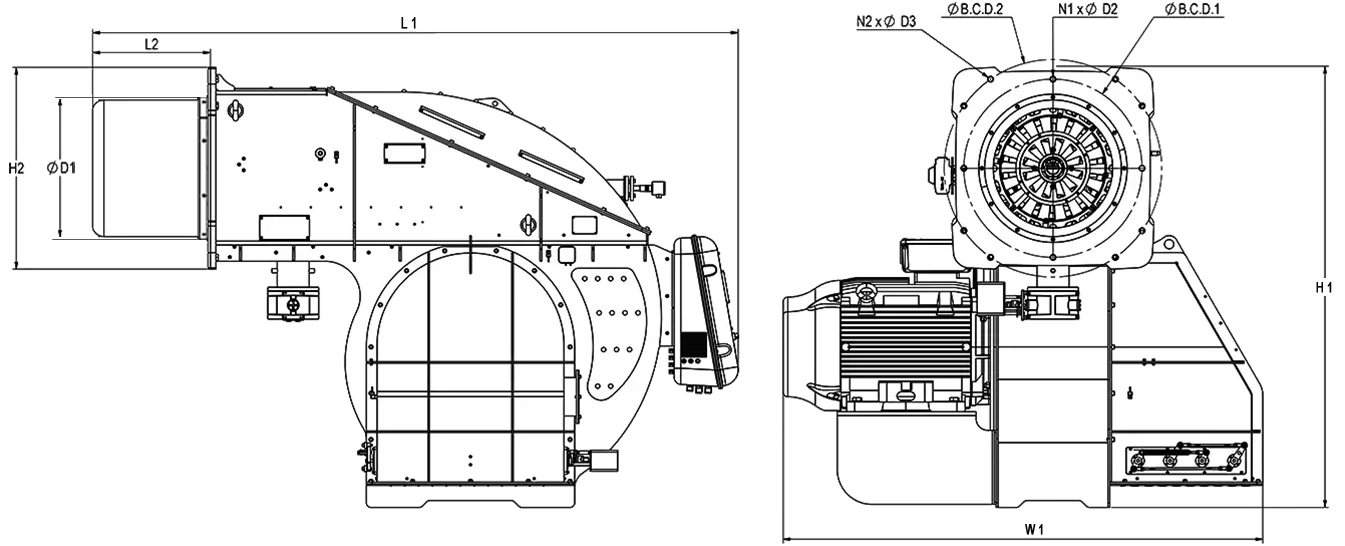

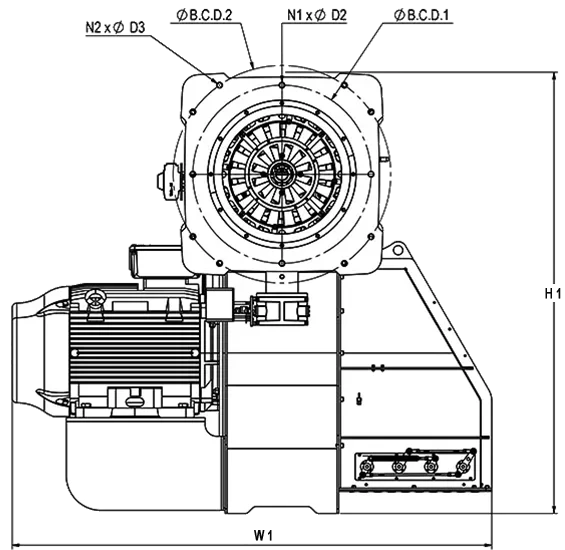

| Total Dimension | 2790x2072x1964 | mm |
| Weight | ~1625 | Kg |
