Power: 15000 (kW) |

SKU: RLGBMM1550DB |

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
1900-15000 / 1635-12906
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:8
G20 Gas Rated Output
1900-15000
kW
G20 Gas Flow Rate
190-1500
m3/h
G25 Gas Rated Output
1900-15000
kW
G25 Gas Flow Rate
221-1744
m3/h
LPG Rated Output
2900-15000
kW
LPG Gas Flow Rate
112-581
m3/h
Light Oil Rated Output
3000-15000
kW
Light Oil Flow Rate
253-1265
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
257-360
mbar
Gas Line Pressure (High Pressure type)
2.5-4
bar
Input Gas Pipe Size (Low Pressure)
DN 100
Input Gas Pipe Size (High Pressure)
DN 100
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
kW
Fan Motor Speed
rpm
Pump Model
T4
Pump Motor Power
3
kW
Pump Motor Speed
2850
rpm
Gas Operation Mode
Electrical Modular
Oil Operation Mode
Electrical Modular
Centrifugal Fan
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
2208x1267x1251
mm
Weight
600
Kg

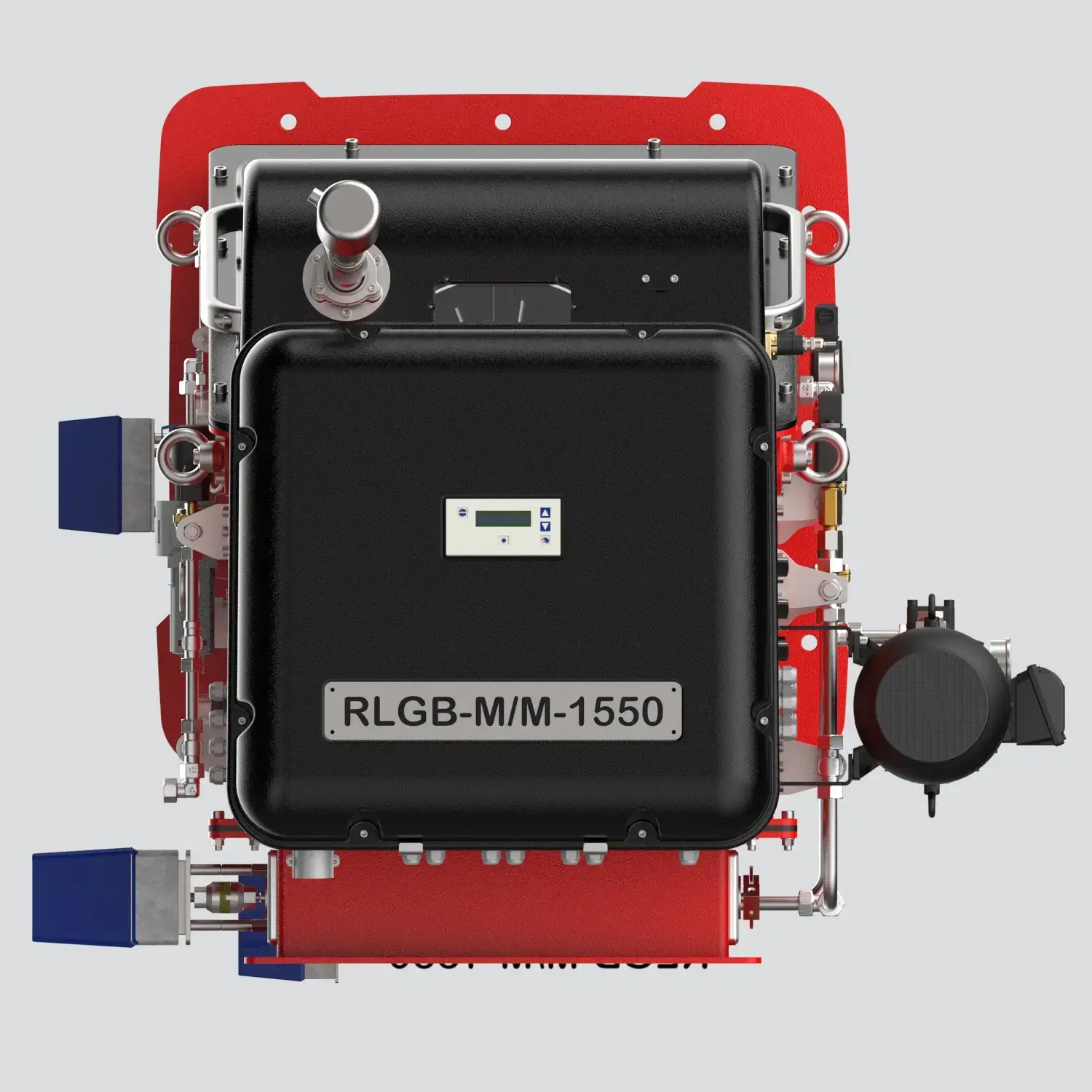

RLGB-M/M-1550-DB

Power: 15000 (kW)

SKU: RLGBMM1550DB

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
1900-15000 / 1635-12906
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:8
G20 Gas Rated Output
1900-15000
kW
G20 Gas Flow Rate
190-1500
m3/h
G25 Gas Rated Output
1900-15000
kW
G25 Gas Flow Rate
221-1744
m3/h
LPG Rated Output
2900-15000
kW
LPG Gas Flow Rate
112-581
m3/h
Light Oil Rated Output
3000-15000
kW
Light Oil Flow Rate
253-1265
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
257-360
mbar
Gas Line Pressure (High Pressure type)
2.5-4
bar
Input Gas Pipe Size (Low Pressure)
DN 100
Input Gas Pipe Size (High Pressure)
DN 100
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
kW
Fan Motor Speed
rpm
Pump Model
T4
Pump Motor Power
3
kW
Pump Motor Speed
2850
rpm
Gas Operation Mode
Electrical Modular
Oil Operation Mode
Electrical Modular
Centrifugal Fan
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
2208x1267x1251
mm
Weight
600
Kg
Burner Type L1 L2 L3 L4 L5 L6 L7 H1 H2 D1 D2 D3 N1 N2 B.C.D1 B.C.D2
RLGB-M/M-1550-DB
2208
510
1267
650
556
556
650
1251
872
590
20
20
4
8
770
940
Gas Operation
Nox (mg/kW.h)
CO (ppm)
120
30
Light Oil Operation
Nox (mg/kW.h)
CO (ppm)
170
30

Gas Operation

Nox (mg/kW.h) CO (ppm)
120
30

Light Oil Operation

Nox (mg/kW.h) CO (ppm)
170
30
