Power: 580 (kW) |

SKU: RGB55 |

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
160-580 / 138-499
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:3
G20 Gas Rated Output
160-580
kW
G20 Gas Flow Rate
16-58
m3/h
G25 Gas Rated Output
160-580
kW
G25 Gas Flow Rate
19-67
m3/h
LPG Rated Output
160-580
kW
LPG Gas Flow Rate
6-22
m3/h
Light Oil Rated Output
kW
Light Oil Flow Rate
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
24-138
mbar
Gas Line Pressure (High Pressure type)
bar
Input Gas Pipe Size (Low Pressure)
Rp 1 1/2
Input Gas Pipe Size (High Pressure)
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
0.75
kW
Fan Motor Speed
2840
rpm
Pump Model
Pump Motor Power
kW
Pump Motor Speed
rpm
Gas Operation Mode
Two stage
Oil Operation Mode
Centrifugal Fan
225x80x12.7
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
851x565x427
mm
Weight
44
Kg

RGB-55

Power: 580 (kW)

SKU: RGB55

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
160-580 / 138-499
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:3
G20 Gas Rated Output
160-580
kW
G20 Gas Flow Rate
16-58
m3/h
G25 Gas Rated Output
160-580
kW
G25 Gas Flow Rate
19-67
m3/h
LPG Rated Output
160-580
kW
LPG Gas Flow Rate
6-22
m3/h
Light Oil Rated Output
kW
Light Oil Flow Rate
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
24-138
mbar
Gas Line Pressure (High Pressure type)
bar
Input Gas Pipe Size (Low Pressure)
Rp 1 1/2
Input Gas Pipe Size (High Pressure)
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
0.75
kW
Fan Motor Speed
2840
rpm
Pump Model
Pump Motor Power
kW
Pump Motor Speed
rpm
Gas Operation Mode
Two stage
Oil Operation Mode
Centrifugal Fan
225x80x12.7
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
851x565x427
mm
Weight
44
Kg
Burner Type L1 L2 L3 H1 H2 D1 D2 D3 D4 N N1 N2 B.C.D B.C.D1 B.C.D2
RGB-55
851
235
565
427
178
13.5
240
4
210

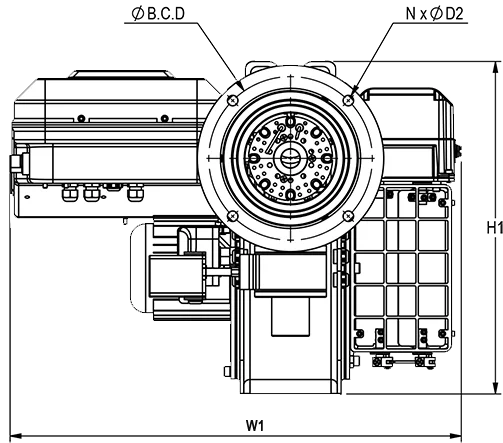

RGB-55-Dimension GAS STAGING MONO BLOCK BURNER
RGB-55-Diagram GAS STAGING MONO BLOCK BURNER
Gas Operation
Nox (mg/kW.h)
CO (ppm)
120
30

Gas Operation

Nox (mg/kW.h) CO (ppm)
120
30
