the best industrial burner, boiler burner and furnace burner in the world

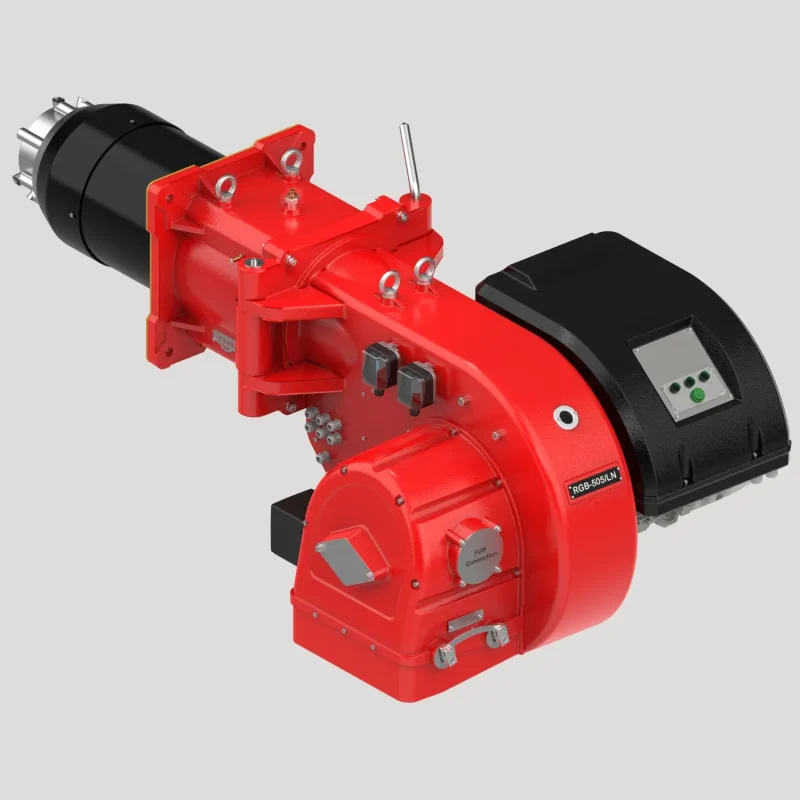

RGB-505/LN

Power: 5100 (kW)

SKU: RGB505LN

5/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
700-5100 / 603-4388
(kW) / (Mcal/h)
NOx Class
III
Turn Down Ratio
1:7
G20 Gas Rated Output
700-5100
kW
G20 Gas Flow Rate
70-510
m3/h
G25 Gas Rated Output
700-5100
kW
G25 Gas Flow Rate
81-594
m3/h
LPG Rated Output
750-5100
kW
LPG Gas Flow Rate
29-198
m3/h
Light Oil Rated Output
kW
Light Oil Flow Rate
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
146-360
mbar
Gas Line Pressure (High Pressure type)
1.5-4
bar
Input Gas Pipe Size (Low Pressure)
DN 80
Input Gas Pipe Size (High Pressure)
DN 80
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
11
kW
Fan Motor Speed
2900
rpm
Pump Model
Pump Motor Power
kW
Pump Motor Speed
rpm
Gas Operation Mode
Double Stage
Lamtec
Oil Operation Mode
Lamtec
Centrifugal Fan
315x104x38
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
1720x925x800
mm
Weight
221
Kg
{{ reviewsTotal }}{{ options.labels.singularReviewCountLabel }}
{{ reviewsTotal }}{{ options.labels.pluralReviewCountLabel }}
{{ options.labels.newReviewButton }}
{{ userData.canReview.message }}

Burner Type L1 L2 L3 H1 H2 D1 D2 D3 D4 N N1 N2 B.C.D B.C.D1 B.C.D2
RGB-505/LN
1720
552
925
797
413
324
20
4
490
RGB-505-LN-Dimension

Gas Operation
Nox (mg/kW.h)
CO (ppm)
80
20

Gas Operation

Nox (mg/kW.h) CO (ppm)
80
20

Proposal Form 3D
Download
