RGB-M-80

Power: 810 (kW)

SKU: RGBM80

0.0/5

Technical Data

Technical Data
Value
Unit
Heat Rated Output
297-810 / 256-697
(kW) / (Mcal/h)
NOx Class
II
Turn Down Ratio
1:3
G20 Gas Rated Output
297-810
kW
G20 Gas Flow Rate
30-81
m3/h
G25 Gas Rated Output
297-810
kW
G25 Gas Flow Rate
35-94
m3/h
LPG Rated Output
297-810
kW
LPG Gas Flow Rate
12-31
m3/h
Light Oil Rated Output
kW
Light Oil Flow Rate
kg/h
Heavy Oil Rated Output
kW
Heavy Oil Flow Rate
kg/h
Gas Line Pressure (Low pressure)
40-138
mbar
Gas Line Pressure (High Pressure type)
bar
Input Gas Pipe Size (Low Pressure)
Rp 1 1/2
Input Gas Pipe Size (High Pressure)
Electric Power Supply Phase
3
ph
Electric Power Supply Frequency
50
Hz
Electric Power Supply Voltage
380-400
V
Fan Electrical Motor Power
1.1
kW
Fan Motor Speed
2840
rpm
Pump Model
Pump Motor Power
kW
Pump Motor Speed
rpm
Gas Operation Mode
Electrical Modular
Lamtec
Oil Operation Mode
Lamtec
Centrifugal Fan
250x100x19
mm
IP (With reference to ISIRI 2868)
43
Total Dimension
921x578x461
mm
Weight
53
Kg
{{ reviewsTotal }}{{ options.labels.singularReviewCountLabel }}
{{ reviewsTotal }}{{ options.labels.pluralReviewCountLabel }}
{{ options.labels.newReviewButton }}
{{ userData.canReview.message }}

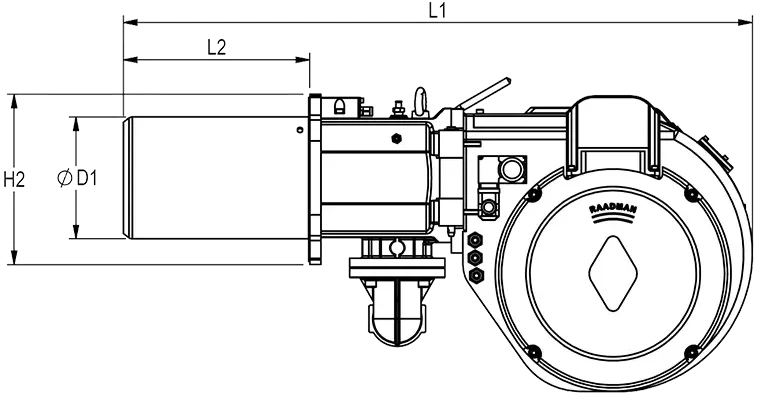

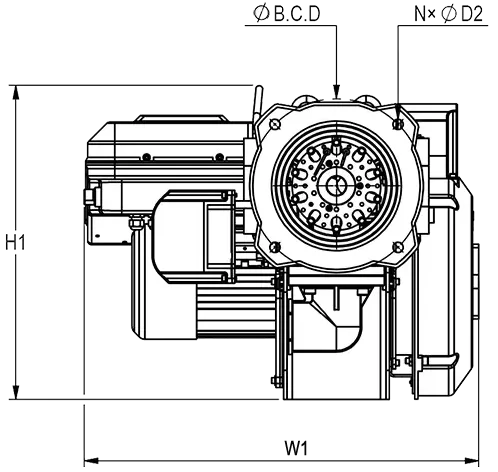

Burner Type L1 L2 L3 H1 H2 D1 D2 D3 D4 N N1 N2 B.C.D B.C.D1 B.C.D2
RGB-M-80
921
273
578
461
254
183
15
4
255

Gas Operation
Nox (mg/kW.h)
CO (ppm)
120
30

Gas Operation

Nox (mg/kW.h) CO (ppm)
120
30
