| Heat Rated Output | 1200-12000 / 1032-10325 | (kW) / (Mcal/h) |
| NOx Class | II | — |
| Turn Down Ratio | 1:10 | — |
| G20 Gas Rated Output | 1200-12000 | kW |
| G20 Gas Flow Rate | 120-1200 | m³/h |
| G25 Gas Rated Output | 1200-12000 | kW |
| G25 Gas Flow Rate | 140-1395 | m³/h |
| LPG Rated Output | 2000-12000 | kW |
| LPG Gas Flow Rate | 78-465 | m³/h |
| Light Oil Rated Output | 2400-12000 | kW |
| Light Oil Flow Rate | 202-1012 | kg/h |
| Heavy Oil Rated Output | -- | kW |
| Heavy Oil Flow Rate | -- | kg/h |
| Gas Line Pressure (Low Pressure) | 242-360 | mbar |
| Gas Line Pressure (High Pressure Type) | 4 | bar |
| Input Gas Pipe Size (Low Pressure) | DN 100 | — |
| Input Gas Pipe Size (High Pressure) | DN 100 | — |
| Electric Power Supply Phase | 3 | ph |
| Electric Power Supply Frequency | 50 | Hz |
| Electric Power Supply Voltage | 380-400 | V |
| Fan Electrical Motor Power | 30 | kW |
| Fan Motor Speed | 2850 | rpm |
| Pump Model | T3 | — |
| Pump Motor Power | 2.2 | kW |
| Pump Motor Speed | 2840 | rpm |
| Gas Operation Mode | Electrical Modular | — |
| Oil Operation Mode | Electrical Modular | — |
| Centrifugal Fan | 600x136x55 | mm |
| IP (With reference to ISIRI 2868) | 43 | — |

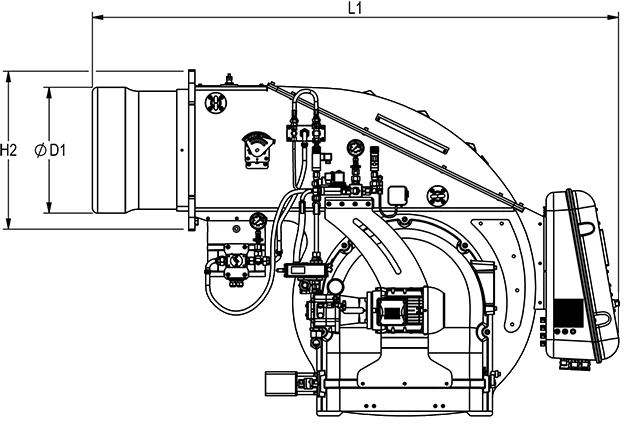

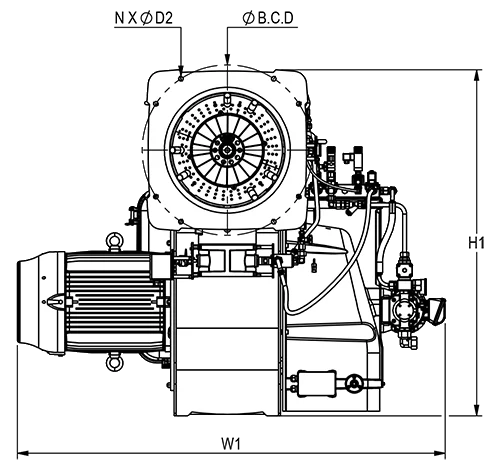

| Total Dimension | 2008x1623x1317 | mm |
| Weight | 895 | Kg |
